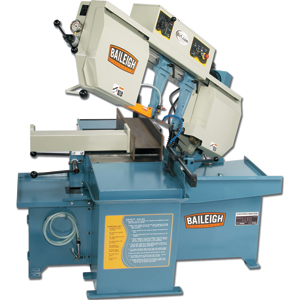

Baileigh BS-20M Horizontal Bandsaw Machine

Calculating latest stock
Code: 35141
Manufacturers Part No: BSMBS20M
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
£9,900.60 each
exc. VAT
£11,880.72 each
inc. VAT
Add to order

Product Overview

  • This band saws offer more cutting capacity in a variable speed mitre saw than any other saw on the market, for the investment.


    The BS-20M 330x457mm single mitre manual Band Saw has a 4130mm x 25mm x 1mm thick blade.

    The BS-20M has extremely heavy-duty cast iron guide arms and wheels.

    This saw has a great working height of 31" and has a pre-loading and post cutting table that holds the in feed bar and the cut piece, allowing for straighter cuts and longer blade life.

    The BS-20M band saw uses a 27mm band saw blade, making it an extremely accurate and fast cutting saw.

    We recommend using good quality blades manufactured by Lenox® for greater productivity and longer machine life.

    The heavy cast iron saw head provides rigidity and swivels 0-60 degrees.

    Direct gear drive helps extend saw blade life, and allows saw head to make more accurate cuts and cut faster.

    Hydraulic descent feed or pressure can be adjusted by operator; this is important when cutting different size and different types of material.

    Powerful coolant pump cools blade and assists chip removal system. We recommend a petroleum based or synthetic based coolant that should be mixed 1:20 (coolant to water).

    A broken blade tension devise shuts down the machine in case a blade breaks.

    This is the perfect machine for cutting solids (round, square, or rectangles), tubing, angle iron and much more in angles up to 60 degrees. Perfect for the small to medium fabricator or job shop who needs to cut mild steel, stainless steel, aluminium, chromoly, brass, bronze, and even plastics.

    Fitted with the proper blade, this machine will provide years of profitable production.

    The BS-20M is a Band Saw capable of cutting 13" OD and is the perfect saw for cutting at 90 degrees or mitre angles. This saw can cut up to 13" x 18" material, meaning you get more value for your investment than with any other saw on the market.

    Quick releases allow the operator to change the mitre angle in seconds. This band saw has four operating speeds, a mitre head, and a hydraulic controlled descent devise for perfect feeds and longer blade life.

    The Band Saw is constructed of a heavy cast iron saw head and base and the blades are guided via a tight tolerance hardened roller bearings and accompanied by tungsten wear guides. Each band saw has a powerful coolant system and a broken blade tensioning devise that shuts down the machine if the blade breaks. Of course guard doors are interlocked, so if someone opens a guard while the machine is running it will shut down the saw.

    The BS-20 series band saw has a hydraulic descent for larger production runs that increases blade life and reduces operator fatigue. It has a hydraulic descent control device for the down feed that is reset when the head is manually lifted.

    This metal band saw series can cut up to 330mm OD capacities.

    This series of band saw requires 400V, Three Phase, 50 Hertz.

    The BS-20 horizontal band saw has a mitre saw head that can swivel up to 60 degrees.

    This series of horizontal band saw comes standard with a four drive speeds drive allowing the operator to fine tune the blade speed for the material they are cutting.

    The BS-20 metal cutting saw series requires a 27mm wide saw blade by .032" wall thickness, making this series a very precise mitre saw.


    Cutting degree: 90° / 45° / 60°

    Round: 330mm / 305mm / 216mm

    Square 330mm / 279mm / 160mm

    Rectangular 330x457mm / 330x274mm / 33 x184mm

    Blade Size: 4130mm x 25mm x 1mm

    Four blade speeds: 28, 41, 60 and 78 m/min

    Motor: 2.3Kw

    Measurements (WxLxH): 2057 x 1778 x 1448mm

    Weight: 816kg

    6 Gallon coolant tank

    Manual Vice Control

    Input: 400 Volt, 50Hz, Three Phase

    Table Height: 787mm

    Additional deliver charges will apply on this item depending on geographical area, please contact our sales on team on 08452 603050 or email for delivery charges prior to ordering.
