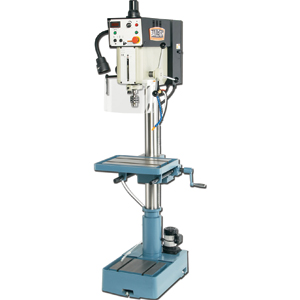

Baileigh DP-1000VS 25mm MT3 Drill Press

Calculating latest stock

PILLAR DRILL DP1000VS 25MM MT3

Code: 35147

Part No: PDDP1000VS

Order For Delivery

Select the required delivery time and method at checkout.

Allow 7-10 days for delivery

£4,000.84 each

exc. VAT

£4,801.01 each

inc. VAT

Add to order

View basket (0)

Product Overview

The Baileigh DP-1000VS variable speed pillar drill press has a very large diameter column to eliminate flexing when drilling at top capacity. Both base and table are made from a super rigid casting adding to the strength of this 25mm drilling machine. An inverter drive within the drill head allows any engineer or fabricator to run tooling at the proper speed for selective drill or tap size available. Running at the exact speed extends tooling life, something that can’t be accomplished on pulley driven style pillar drills. The DP-1000VS drill press comes standard with a coolant system, guarding and a work lamp.

Read more

Specifications

Drill Capacity in Steel: 25mm, Cast Iron: 32mm

Tapping Capacity in Steel: 16mm, Cast Iron: 19mm

Spindle Speed: 150-3000rpm

Swing: 406mm

Spindle Taper: MT3

Spindle Travel: 140mm

Spindle Nose to Table: 610mm, Base: 1143mm

Quill Diameter: 64mm

Column Diameter: 89mm

Table Dimensions (L/W): 457 / 356mm

Table Slot: 16mm

Base Dimensions (L/W): 686 / 483mm

Motor Main: 1.47Kw

Motor Coolant: 0.09Kw

Power Requirements: 220volt / 1 Phase

Dimensions (L/W/H): 813 / 610 / 2007mm

Weight: 263kg

Additional deliver charges will apply on this item depending on geographical area, please contact our sales team for delivery charges prior to ordering.
