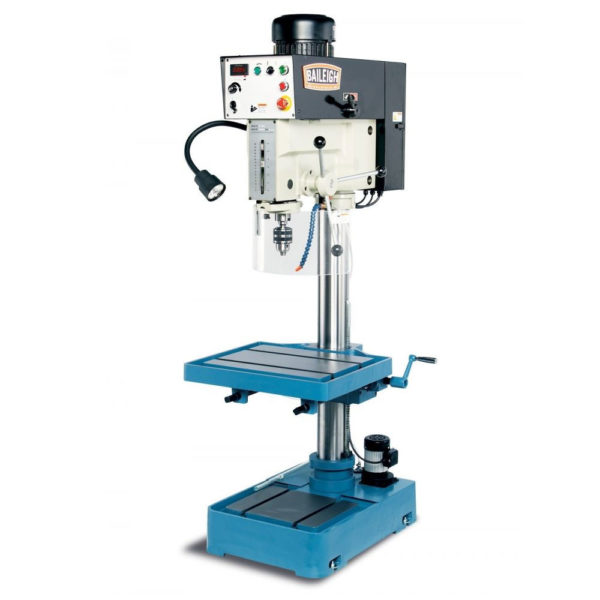

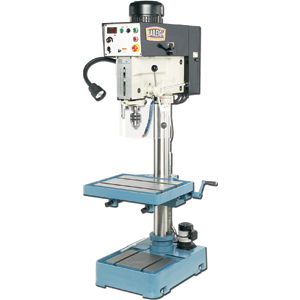

Baileigh DP-1250VS 38mm MT4 Heavy Duty Drill Press

Calculating latest stock
PILLAR DRILL H/D DP1250VS 38MM MT4
Code: 35148
Part No: PDDP1250VS
Order For Delivery
Select the required delivery time and method at checkout.
Allow 7-10 days for delivery
£4,527.48 each
exc. VAT
£5,432.98 each
inc. VAT
Add to order


Product Overview

  • The Baileigh DP-1250VS 38mm MT4 Pillar Drill is a heavy duty drilling machine which offers any fabricator or engineers a great value for money.


    Features:

    As with all of our drill presses this machine comes with and extra wide column for extra support providing for reduced flexing during substantial drilling processes at maximum capacity which is 32mm diameter in mild steel.

    On the DP-1250VS pillar drill a speed potentiometer dial controls the powerful inverter driven motor which is matched up with a digital readout giving you an accurate reading of the actual RPM’s of the quill.

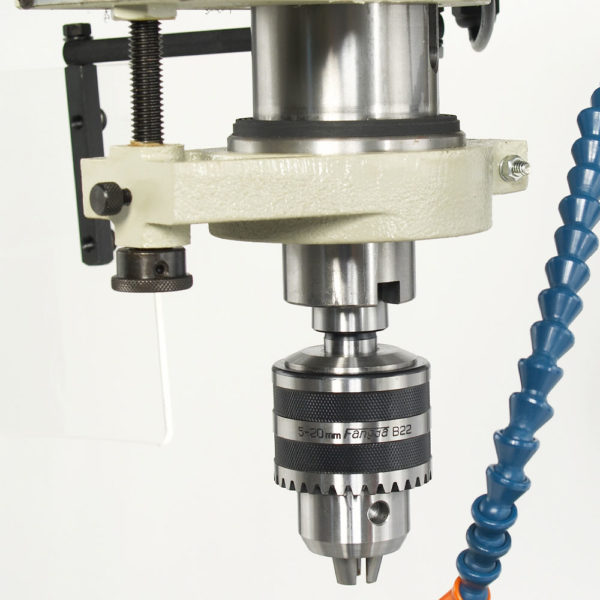

    The heavy duty #4 Morse Taper used by this variable speed drilling machine allows for the effective and efficient transfer of power from the spindle to the quill.

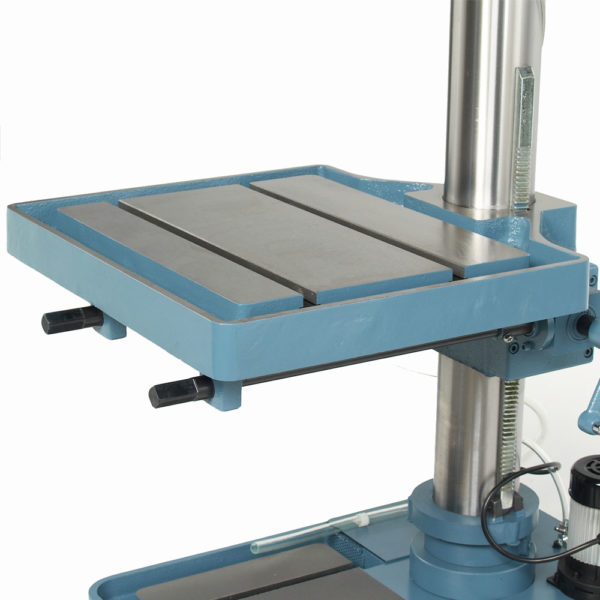

    The work table and base of this pillar drill are made from a high quality and heavy duty casting which have ample T-slots allowing you to adequately and accurately secure you tools and work pieces.

    A powerful coolant system delivers ample amounts of coolant during drilling processes extending drill bit and tapping tool life. All operations occur behind an industrial safety splash guard.

    Specification:

    Drill Capacity: 38mm

    Tapping Capacity: 19mm

    Spindle Speed High: 245-2000rpm / Low: 85-540rpm

    Swing: 533mm

    Spindle Taper: MT4

    Spindle Travel: 152mm

    Spindle Nose to Table: 914mm, Base 1219mm

    Quill Diameter: 76mm

    Column Diameter: 114mm

    Table Dimensions (L/W): 559 / 483mm

    Table Slot: 16mm

    Base Dimensions (L/W): 686 / 483mm



    Motor Main: 1.47Kw

    Motor Coolant: 0.09Kw

    Power Input: 220volt / 1 Phase

    Dimensions (L/W/H): 1016 / 635 / 2108mm

    Weight: 384kg

    Additional deliver charges will apply on this item depending on geographical area, please contact our sales team for delivery charges prior to ordering.
