Draper Expert Opti-Vision PlumbSite Heavy Duty Spirit Levels

Sorry, this product has been discontinued
Calculating latest stock


Product Overview

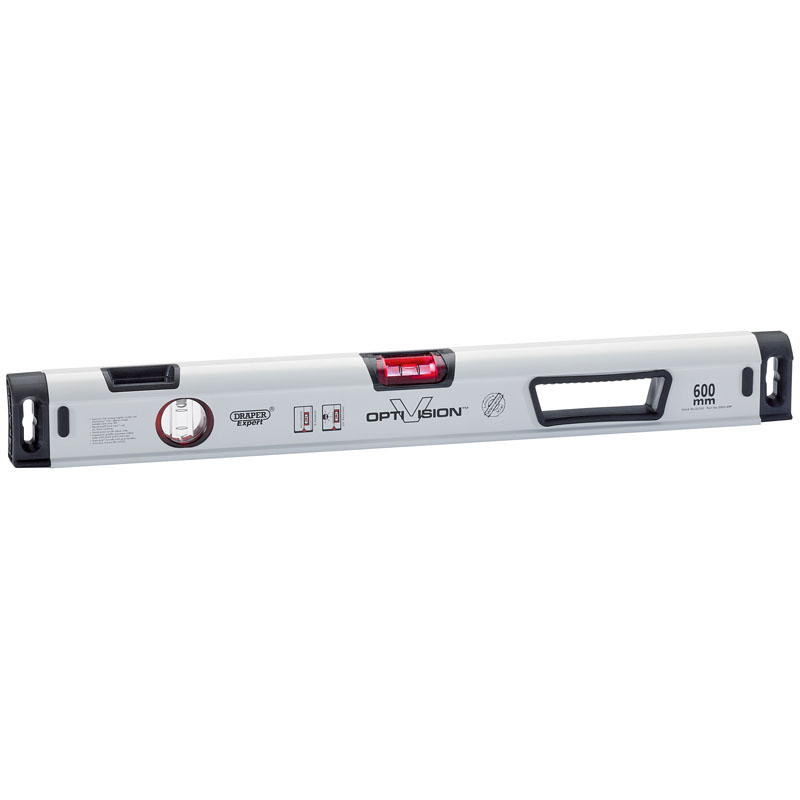

  • Expert quality levels with highly visible red Opti-Vision tilted vial and front viewing ‘Plumb Site’ facility.


    Red Opti-Vision vials create highly visible red bubble definition for exact placement between the reading lines for optimal vision in bright and low light.

    The red vials provide around eight times higher contrast ratio than conventional vials.

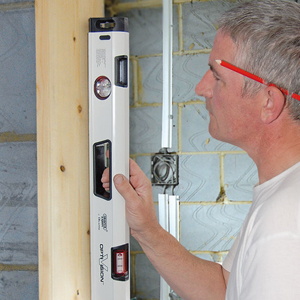

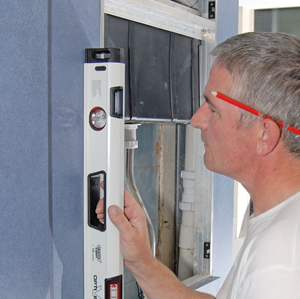

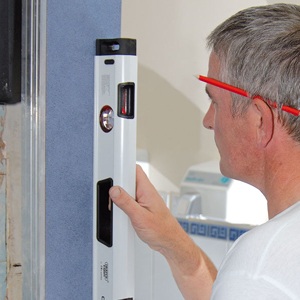

    ‘Plumb Site’ dual view vial allows the user to stand opposite the surface to ensure it is level, through a one-to-one reflection of the vial. This means there is a complete field of vision for a true plumb reading, ie. no parallax error and no neck straining to look around the side of the level.

    Aluminium box section extrusion with milled base (up to 1200mm), curved top, electrostatically powder coated and baked with polyester acrylic paint.

    Ergo-grip non-slip soft grip handles, tough bi-material end caps and anti-slip wall pads.

    Accuracy 0.5mm per 1M = 0.029° in standard position.

    Available in: 600mm, 900mm, 1200mm and 1800mm lengths.

    Manufactured by Kapro for the Draper Expert range.
