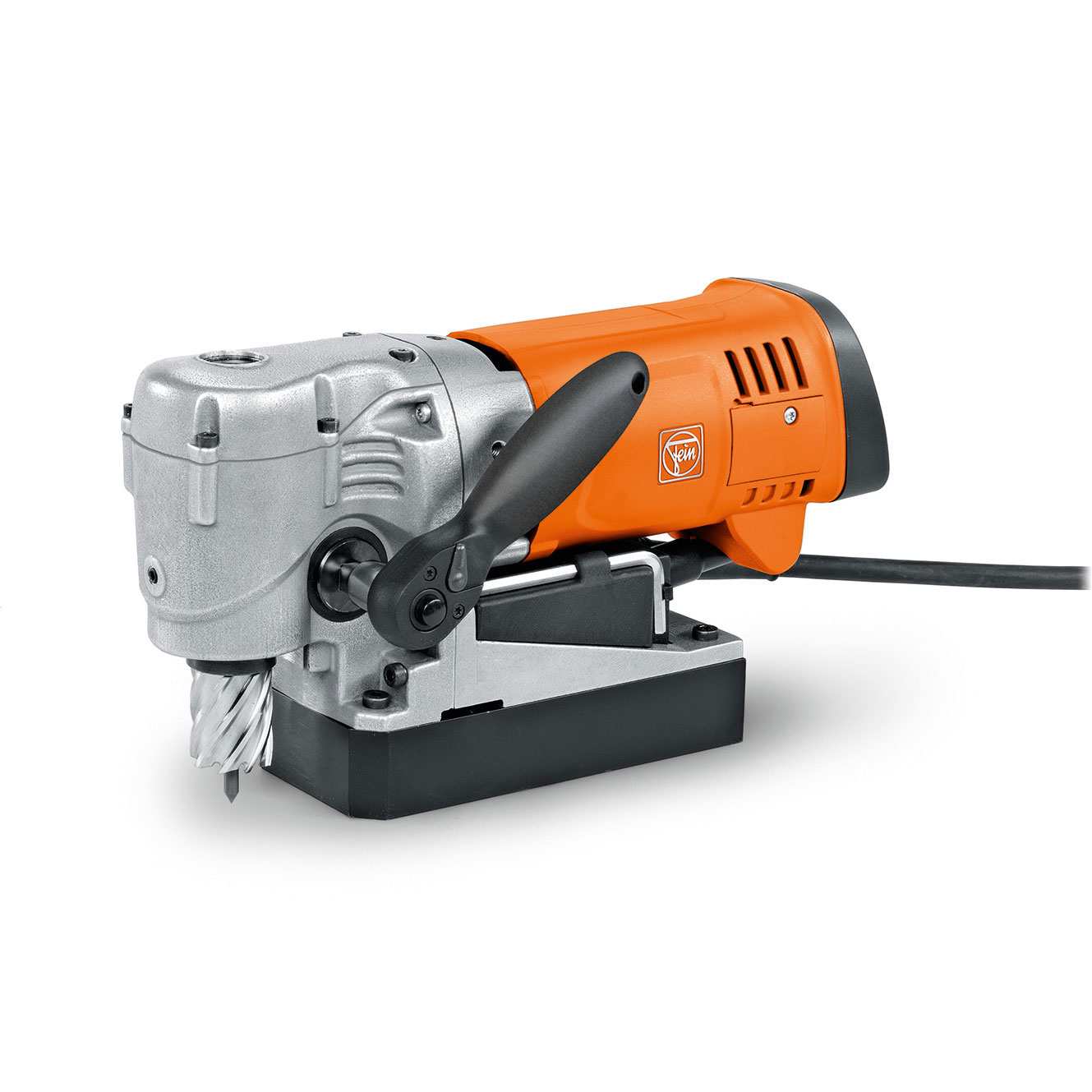

Fein KBC35 35mm Magnetic Broaching Machine

Calculating latest stock

Product Overview

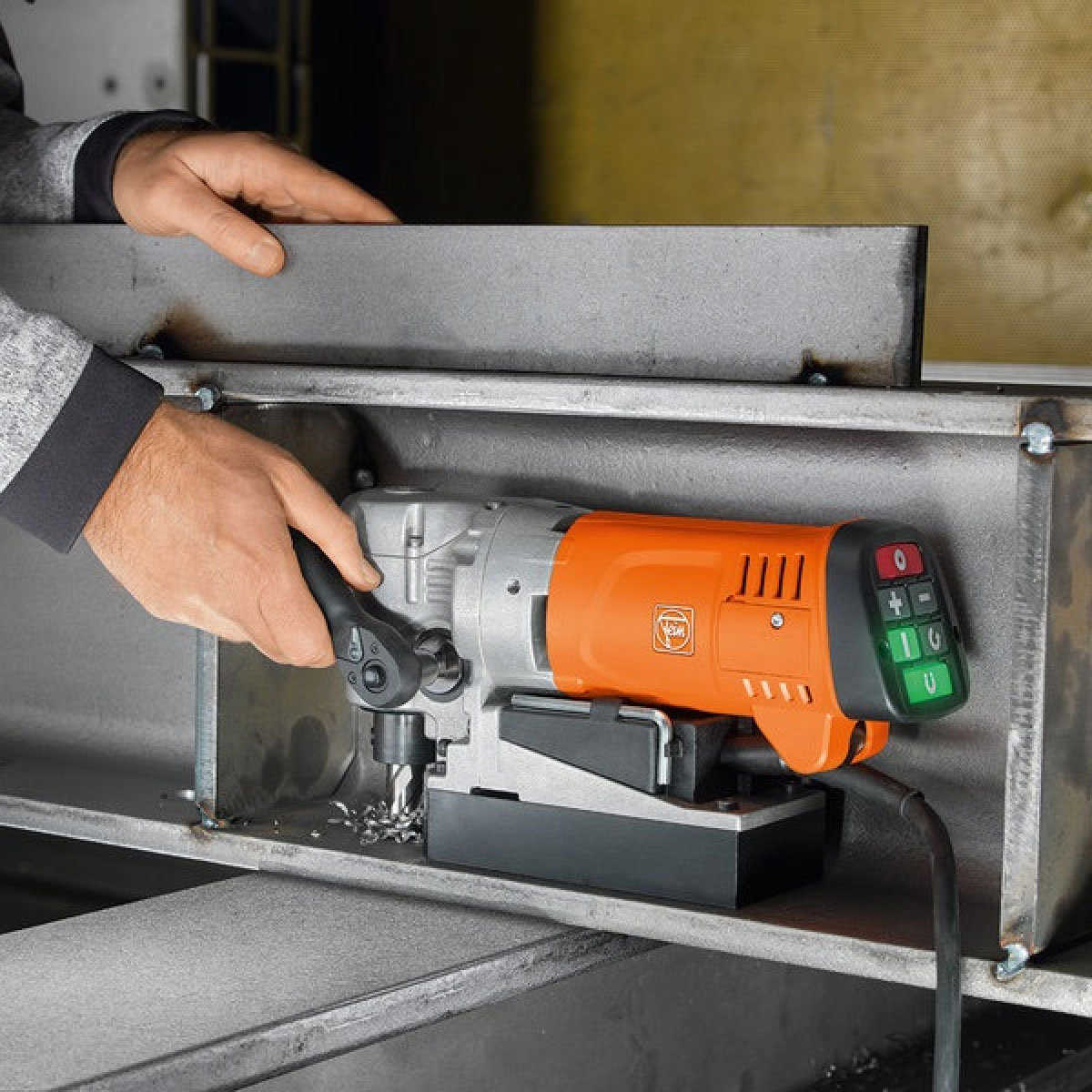

  • Extremely small and light single-speed compact magnetic core drill with right-angle drive and minimum dimensions for use in tight spaces in the workshop and on the construction site.

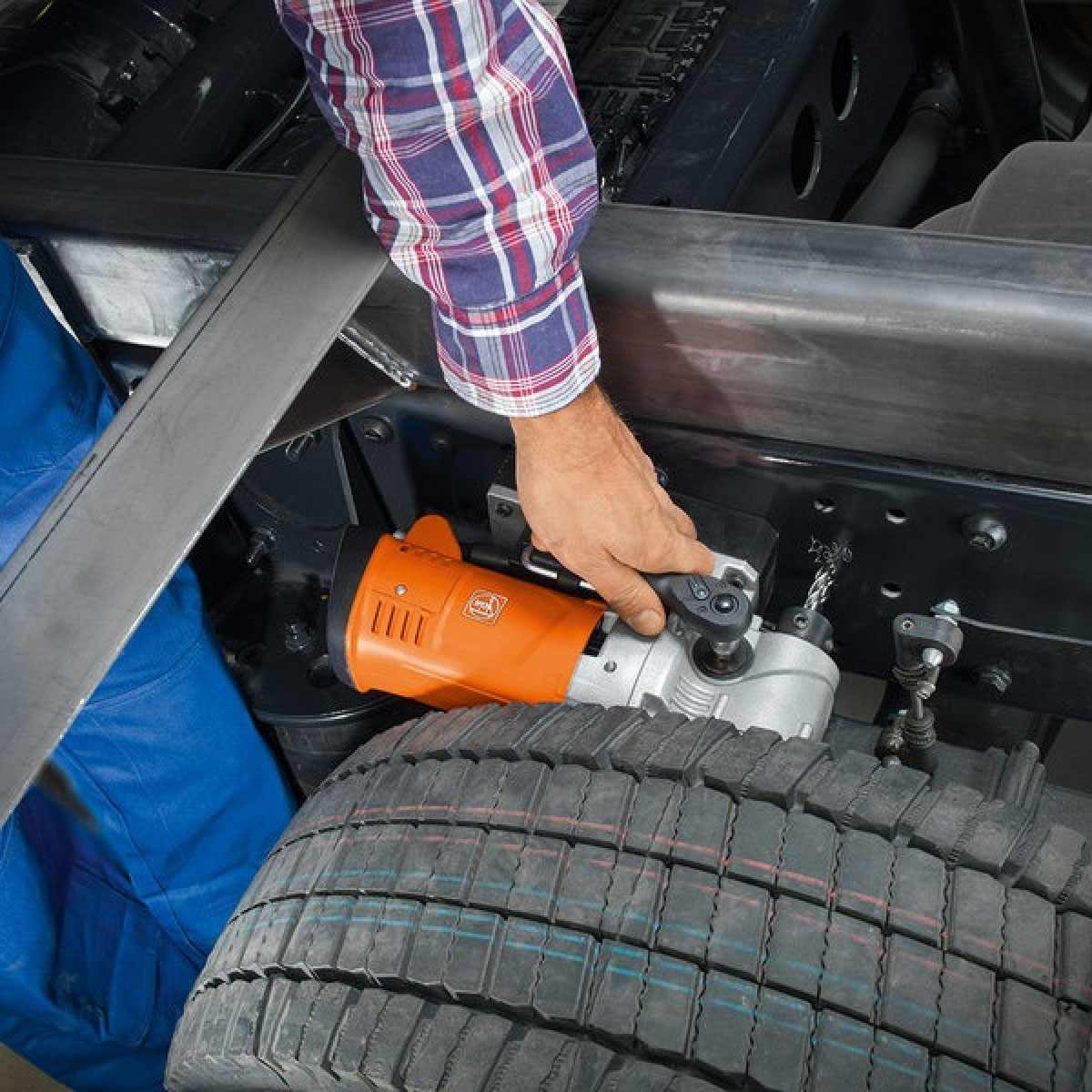

    Extremely small and light for working in tight and difficult-to-reach spots – including vertically and overhead – thanks to height of 169 mm.

    Extremely low wear and long-life tool design with spindle sleeve feed without clearance for accurate drilling results in tough use in industry and manual trades.

    Speed stable 1100 W FEIN high-power motor with tacho electronics and forward/reverse running for quick work progress in all applications such as core drilling, twist drilling, tapping and countersinking.

    Fixed drill motor for working in tight spaces.

    High gearbox positioning for optimum view of the drilling point.

    Space-saving operation on both sides with ratchet.

    Easy tool positioning as it weighs just 7.5 kg.

    Tilt sensor.

    Simple operating concept avoids mix-ups and can be clearly seen by the user.

    Convenient magnetic holding force display.

    Electronic speed setting.

    Internal cooling lubrication by means of hand pump.

    Speed saving "memory function".


    Carbide core drill bit max. diameter: 35 mm

    Core drill, drilling depth max: 35 mm

    Input: 1,100 W

    Output: 550 W

    Speed no load: 520 rpm

    Speed full load: 130 rpm

    Stroke: 46 mm

    Magnetic holding power: 9,000 N

    Magnetic foot dimensions: 175 x 80 mm

    Cable length: 4m

    Weight according: 7.50kg

    Included as Standard: 3/8” Ratchet, 3/8” Socket Wrench Extension, Coolant Pump, Lashing Strap & Sward Hook.
