Imex I88R Rotating Construction Laser & LRX10 Receiver Kit

Calculating latest stock
IMEX I88R ROTATING LASER & RECEIVER KIT
Code: 34989
Part No: I88RX10KITIME
Order For Delivery
Select the required delivery time and method at checkout.
Allow 1-2 days for delivery
£1,032.24 each
exc. VAT
£1,238.69 each
inc. VAT
Add to order
View basket (0)


Product Overview

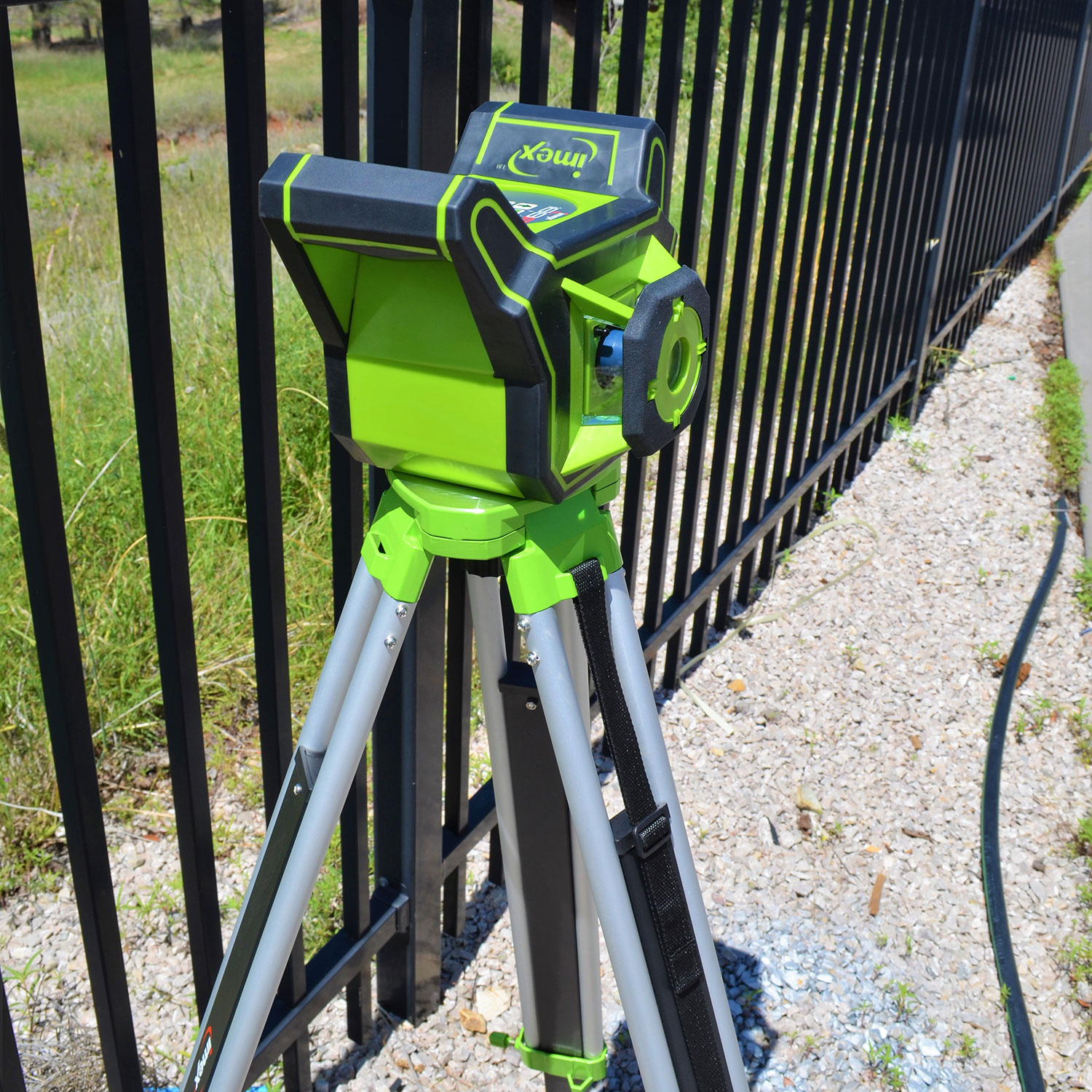

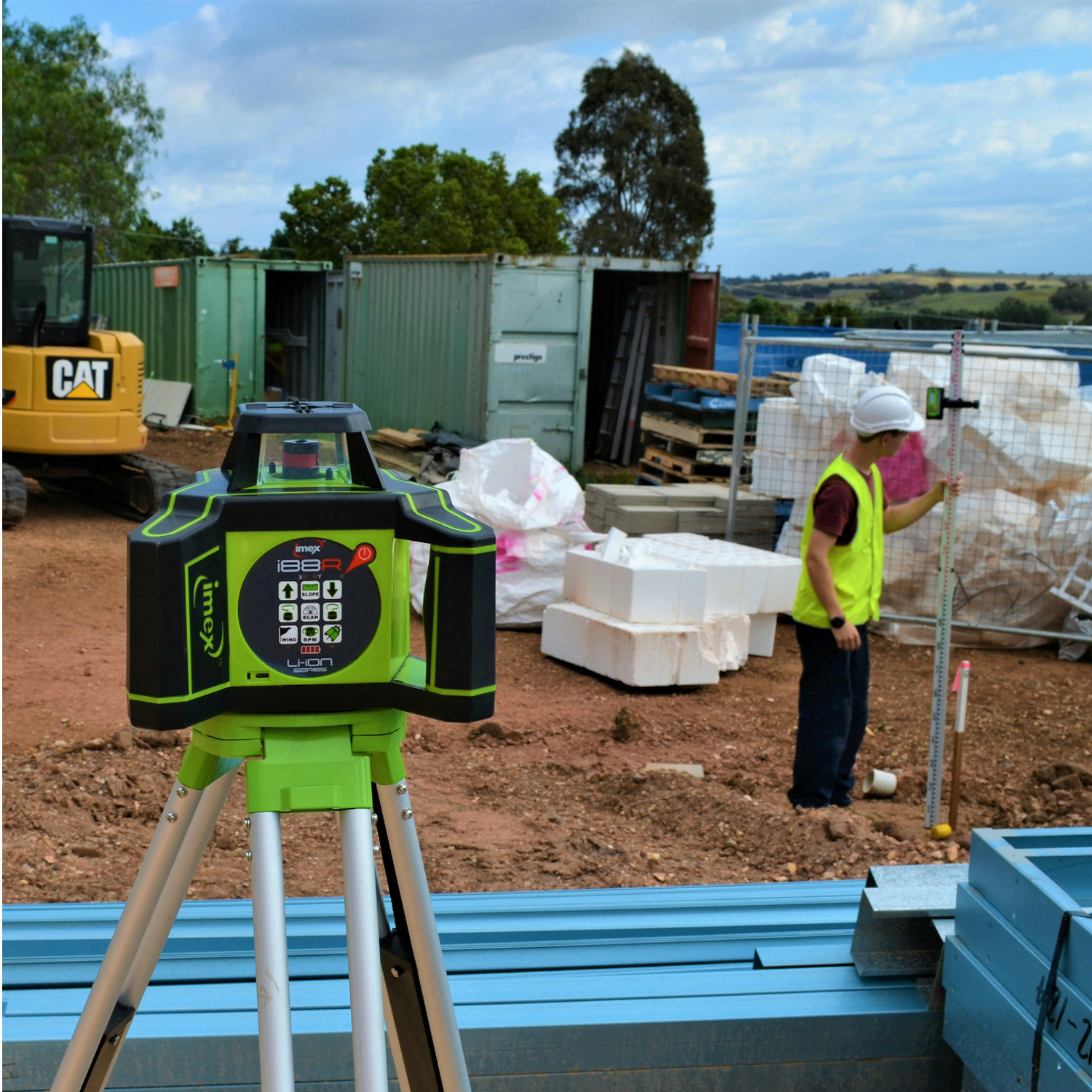

  • The Imex I88R Red Rotating Construction Laser & Receiver Kit with self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and rechargeable 9Ah lithium-ion battery. It represents excellent value with versatile capabilities for a full range of construction functions.


    Read more

    Features:

    Robust construction tough horizontal/vertical laser level.

    Horizontal/Vertical self-levelling (electronic). 600m range. Dual manual grade slope.

    Calibration Certificate 9Ah lithium-ion battery – approx. 40 hours run time.

    USB quick charge port with car charger.

    LRX10 Digital Detector in mm reading.

    90mm Detector reading ultra-fine, fine, medium, course and ultra-course.

    Scan Mode – Allows for part beam rotation in selected working environments, i.e., on interior walls, busy worksites where another laser interference may be present. Various scan lengths and rotation placement.

    Dual Grade – Grade slope to 5° (8.8%) in two directions, X and Y axis Simultaneously for true grade control. Ideal for pipe layout or concrete slab falls.

    Plumb Spot – Top and bottom plumb spot beam to assist in set ups over a point.

    Accuracy – +/- 1.5mm @ 30 metres for excellent results every time.

    Remote Control Panel – allows grade or other functions to be carried out up to 20 m away from the instrument, for true one-man operation and greater efficiency.

    Hi-Visibility Case – unique Imex feature, easy to see on the busiest construction site, minimises the risk of the unit being bumped, increasing safety and accuracy.

    Specification:

    Self-Levelling Range +/-5°

    Working Distance: 600m Diameter

    Function: Horizontal/Vertical

    Scan Mode: Yes, 0°, 10°, 45°, 90°, 180°

    Slope Mode: Yes – Single manual grade to 5° 8.8%

    Accuracy: 1.5mm @ 30m

    Rotation Speeds: 0, 60, 120, 300, 600 rpm

    Waterproof/Shockproof: IP66

    Light Source: Red 635nm Class II

    Power: 9 Ah 3.7v lithium-ion

    Detector: LRX10 Double Sided

    Working time – continuous use: 40hrs approx Red

    Charging Time: 30 minutes with USB quick charge

    USBC Charging: Yes; including 12v car charger

    High Wind Sensitivity Re-set: Yes

    Remote Control: Yes, iCR8

    Weight: 2.48kg

    Detector – Pick Up: 90mm -30mm to +60mm

    Detector Reading: Ultrafine – 0.5mm | Fine – 1.0mm | Medium – 2.0mm | Course – 5.0mm | Ultra Course – 10.0mm

    Detector Power: 1-AA > 50 hrs run

    Included as Standard: LS5 Universal 5M Metric-E Telescopic Levelling Staff, SJA30 Aluminium Construction Laser Tripod 100 – 160cm, LRX10 Detector, Remote Control Unit, USB Quick Charge, Rechargeable 9.0Ah Lithium Battery, Car Charger, Target Plate, Calibration Certificate & Case.

    5 Years Warranty on all Imex iSeries Lasers when registered.
