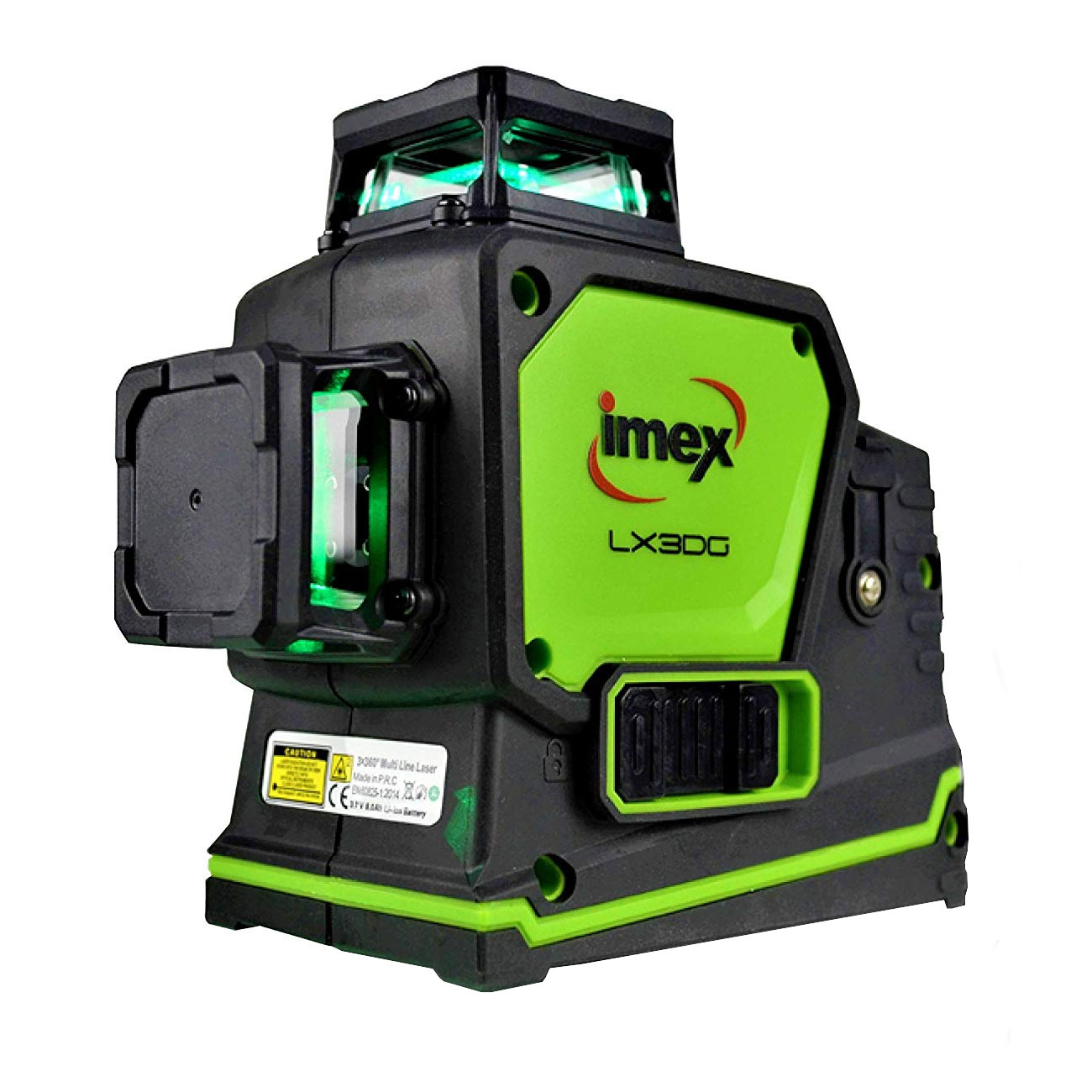

Imex LX3DG 360° Multi Line Green Beam Laser Level

Calculating latest stock
Code: 34476
Manufacturers Part No: LX3DG
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:8
£439.83 each
exc. VAT
£527.80 each
inc. VAT
Add to order

Product Overview

  • Imex LX3DG 360° Multi Line Green Beam Laser Level has everything you could ever wish for in a line laser level. The unit generates 3 x 360° lines with an offset, so that all lines are uninterrupted for maximum convenience and ease in use.


    Multi Line:

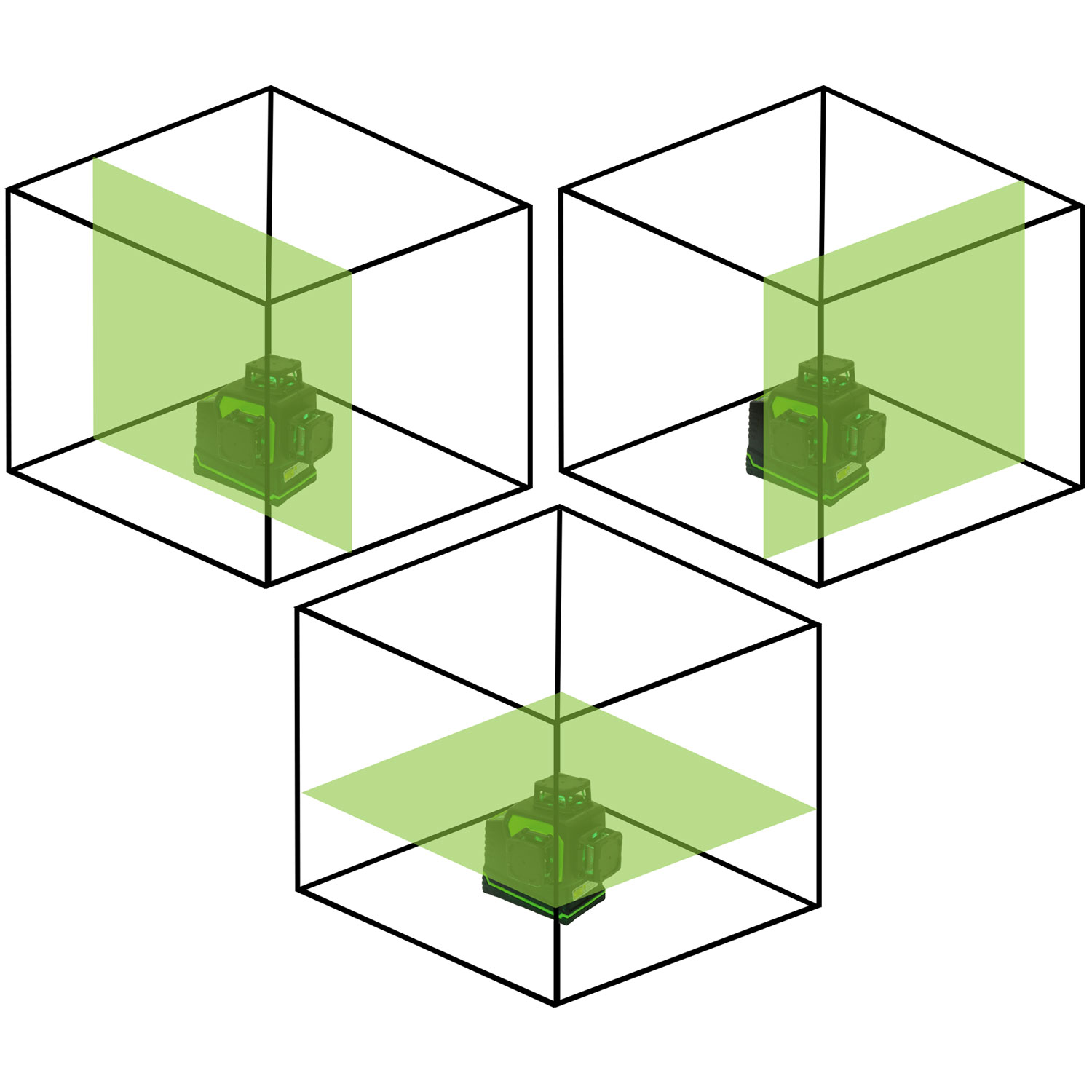

    – 3 x 360° uninterrupted laser lines.

    – 2 x 360° vertical lines.

    – 1 x 360° horizonal line.

    – Separately or simultaneously.

    – All lines cross perfectly at 90°.

    Green ‘hyperbright’ beams ensure ultimate visibility.

    Self-levelling with lock mode for fixed angles.

    Range: 35 metres radius or up to 80 metres with a receiver.

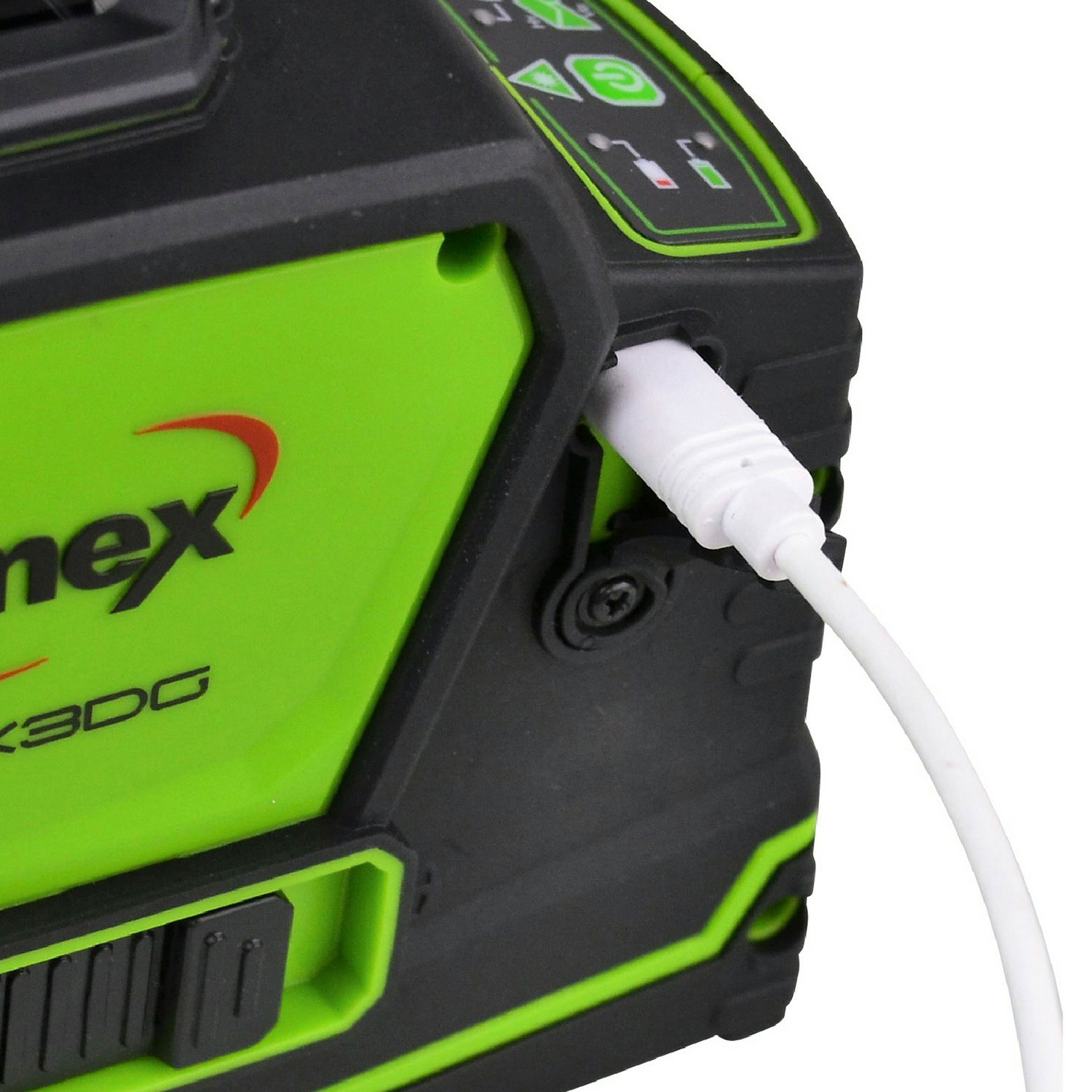

    Powered by a rechargeable 8Ah lithium-ion battery.

    Run time of up to 22 hours with single beam and 8 hours all three beams.

    Can also be used with standard AA alkaline batteries.

    Drop tested to one metre and oven tested to 70°C.

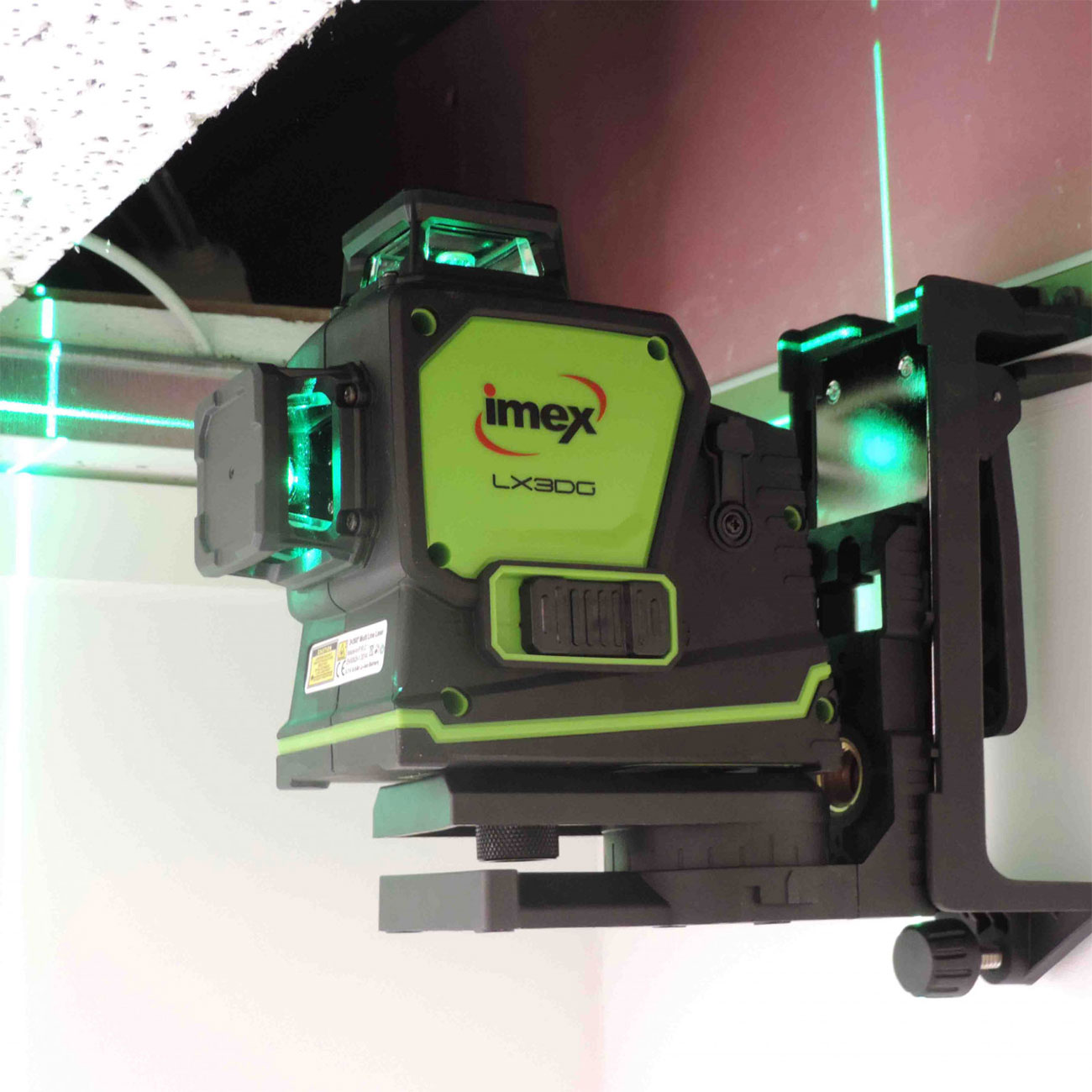

    Supplied with a magnetic wall bracket and ceiling grid clamp.


    Shopfitting and cabinet installation.

    Wall and floor tiling.

    Wall Partitions.

    Electrical switch and light placement.

    Steel fabrication alignment and set out.

    Interior decorating.

    Window and door placement.


    Light source diode: 520nm Green diodes

    Output: Laser Class II

    Accuracy: +/-2mm @ 10m

    Beams: 1 x horizontal – 360°, 2 Vertical – 360°

    Damping type: Self levelling – magnetic

    Hours of continuous use: Approx. 20 hours – all lasers

    Working distance: 35m radius or 80m with detector

    IP rating: IP54

    Included as Standard: Magnetic Wall Bracket, Ceiling Grid Clamp, USB Charger, Li-ion Battery, Target Plate & Carry Case.

    3 Years Warranty on all Imex Line Lasers when registered – excluding L2GS.
