Leica Lino L4P1 Multi Line Laser Level
The Leica Lino L4P1 is a all-in-one 180° laser layout tool designed to handle jobs that have traditionally required both a line and a point laser. Just grab and spin the unit on its base to get close, then use the fine-tune knob to adjust the line or cross point for perfect placement.
The base of the laser is designed for fast and easy set-up.

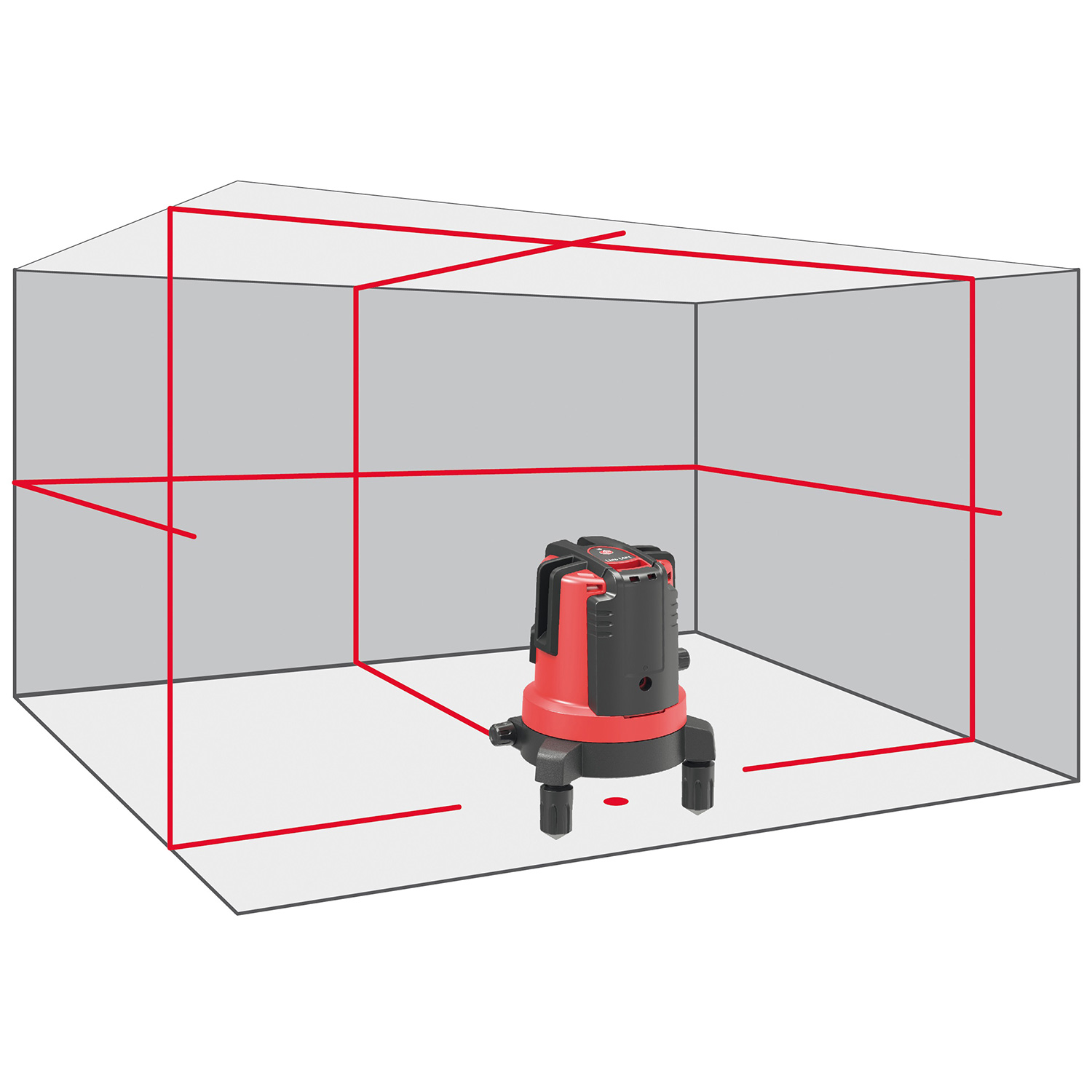

Simply rotate on it’s base for full 360° laser layout.
Fine-tune knob to adjust the line or cross point for perfect placement.
A total of five layout points.
Self-leveling pendulum ensures a level line.
IP54 rated dust-proof and splash protected.

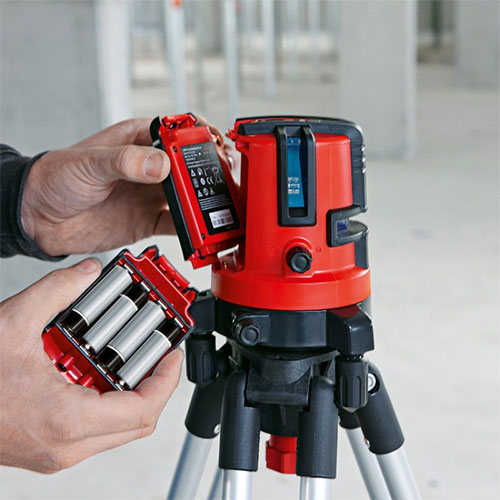

Runs on re-chargeable Li-Ion batteries as well as standard alkaline batteries.
Range with laser receiver: 50m
Accuracy: 2mm at 10m
Laser type: Laser Class 2, IEC60825-1:2014 compliance 620 – 690nm
Battery types: Rechargeable Li-Ion batteries or Alkaline batteries 4 x AA
Battery life Li-Ion batteries: 24 hours
Protection level: IP 54
Operating temperature: 10°C – 50°C
Storage temperature: 25°C – 70°C
Dimensions: 125 x 125 x 162mm
Weight: 1.17 kg
Included as standard: Leica L4P1 Multi Line Laser, Interchangeable Plug, Laser Target, Re-chargeable Li-ion Battery, Alkaline Battery Tray & Case.
3 Years Warranty on all Leica Measuring Equipment when registered.
