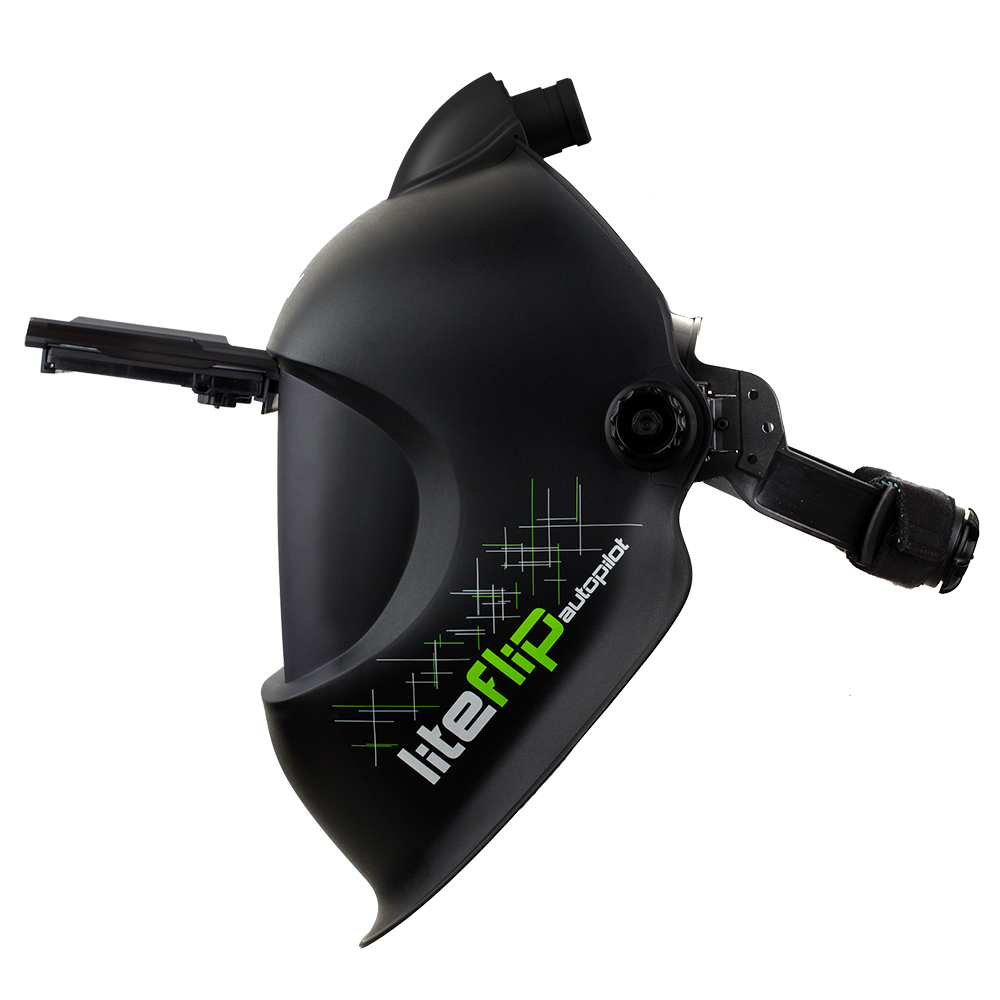

Optrel Liteflip PAPR Auto Darkening Head Shield 4/5-14

Calculating latest stock
OPTREL LITEFLIP PAPR ADF HELMET 4/5-14
Code: 73165
Manufacturers Part No: 4441700OPT
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:1
£315.39 each
exc. VAT
£378.47 each
inc. VAT
Add to order


Product Overview

  • The Optrel liteflip Autopilot is a lightweight semi-automated flip front welding shield which automatically darkens as soon as the welding arc ignites. No manual shade level setting necessary, the Optrel liteflip autopilot automatically adjusts to changing lighting. Automatic shade level adjustment. +/- 2 individual manual offset, sensitivity adjustment, and opening delay with or without twilight function.


    Features:

    The Optrel liteflip autopilot combines the advantages of a flip-up welding helmet with the comfort of the Optrel autopilot With a shade level range from 5 to 14 and fully automatic adjustment, the Optrel liteflip   autopilot achieves a new level of performance.

    All work sequences, such as measuring, testing, grinding, and other welding applications, can be handled without any manual adjustments at the helmet. And without displacing the helmet itself, the welder is always protected perfectly.

    With true colour view the specially developed UV/IR filter allows a realistic perception of colours and at long last brings colour into the world of the welder.

    Twilight ADF Technology unlike other ADF lenses that rapidly return to light, the Twilight ADF technology restores light more naturally, presenting a smoother transition to the eyes. This exclusive technology reduces eye fatigue on welders who are continuously welding, enabling them to work safer and more comfortably

    Weighing only 530g, the liteflip autopilot is one of the lightest flip-up welding helmets available. Its ergonomic design minimizes strain on the head and neck, ensuring comfort throughout the working day.

    Application ranges include most electric arc welding process, Electrode welding (SMAW) MIG / MAG (GMAW) / (GMAW). High melting rate process such as Flux Cored Wire applications, TIG welding (GTAW), Plasma Arc cutting or welding, Oxy-fuel gas cutting and welding.

    The ADF is not recommended for use with laser welding!

    Specification:

    Shade levels:  Flip front open / clear view: shade level 1

                                   Flip front closed / inactive: shade level 4

                                   Flip front closed / active: shade levels 5-14

    Autopilot: Automatic shade level adjustment, shade level range 5 to 14 with individual calibration option of +/- 2

    Power supply photovoltaic cell, 2 pcs batteries 3V exchangeable (CR2032)

    Battery operating time approximately 3,000 hours.

    Three sensors with sensitivity Infinite adjustment, and new “Super High” range

    Switching time Light to dark: 0.100 ms at room temperature.

                                                                0.100 ms at 55°C

    Dark to light: 0.3 s or 1.5 s with twilight function.

    Field of view: Flip-up open: 82 x 102 mm

                                 Flip-up closed: 50 x 100 mm

    Classification: Optical class: 1

                           Scattered light: 1

                           Homogeneity: 1

                           Angular dependence: 2

    Shape stability Welding mask: up to 220°C / 428°F

    Front cover lens: up to 137°C / 279°F

    Eye protection Ultraviolet / Infrared protection: maximum protection at any shade level

    Operating temperature -10°C to +70°C

    Storage temperature -20°C to +80°C

    Weight Standard helmet: 530 gram

    Standards CE, ANSI Z87.1, EAC, complies with CSA Z94.3

    Included as standard: Welding helmet, instruction manual, storage bag, batteries, warranty card

    Exclusive 3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
