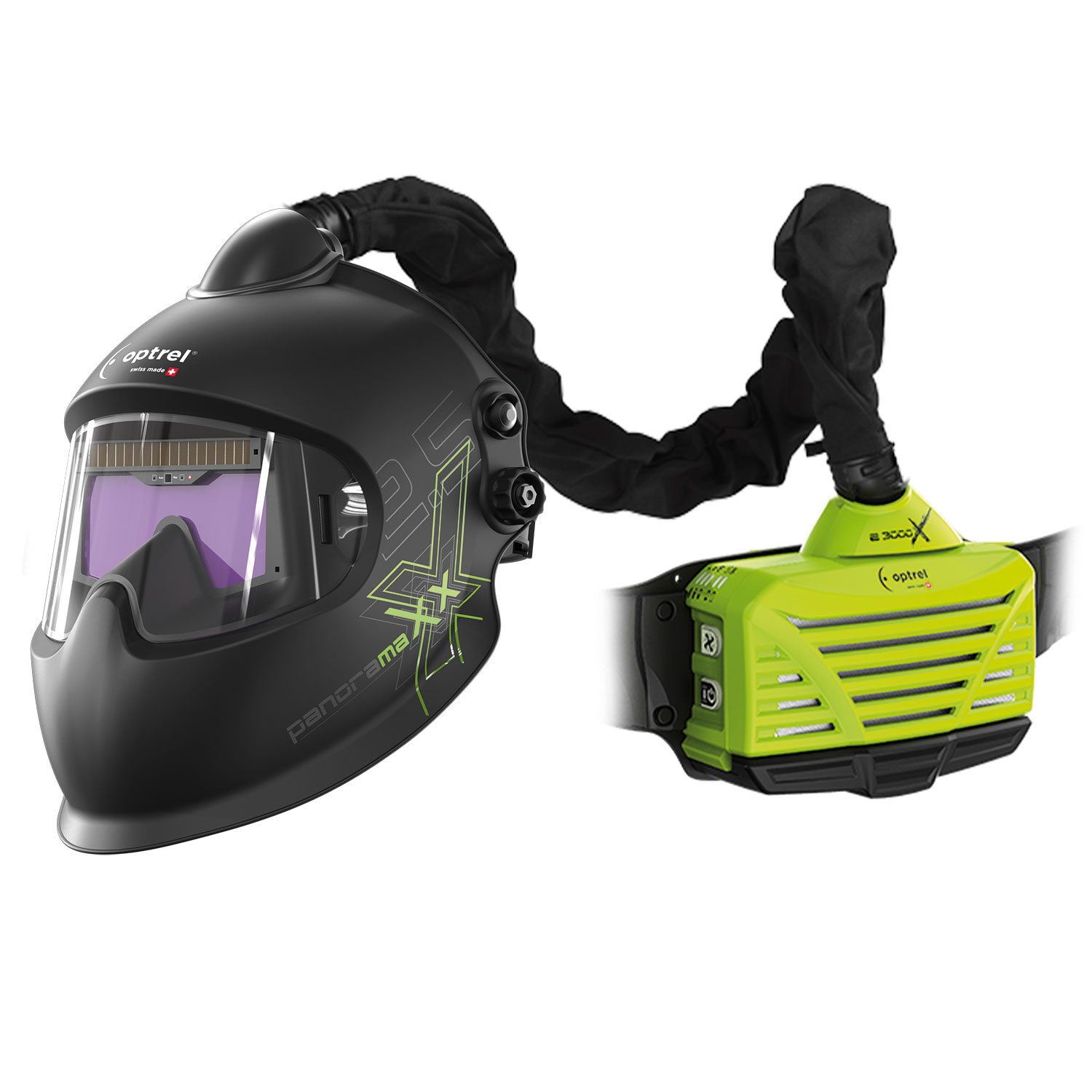

Optrel Panoramaxx & E3000X PAPR c/w 18 Hour Battery Package

Calculating latest stock
Code: 73572
Manufacturers Part No: 4550500GOPT
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
£1,090.65 each
exc. VAT
£1,308.78 each
inc. VAT
Add to order

Product Overview

  • During arc welding, grinding and many other dust-intensive processes, an operatives airways are constantly exposed to harmful fume, fine dust particles and often toxic gases. Wearing RPE (respiratory protection equipment) is therefore essential, no matter how well ventilated the working environment may be. The Optrel E3000X PAPR system offers the maximum in protection, safety and comfort, with no compromises, when compared with most other TH2 PAPR systems on the market. When accompanied by a Optrel Panoramaxx the E3000X PAPR system ensures the user the maximum TH3 protection from welding fume/ fine particulates and grinding dust. The Optrel E3000X also offers the user a highly modular breathing protection solution that you can adapt to your protection needs in seconds. Should unpleasant odours or increased ozone concentrations start to cause mild nausea or headaches, then the Optrel mountain breeze Odour/Ozon Filter is the perfect solution. Working in an environment where you have to rely on comprehensive protection against gases? Then not a problem. In a matter of seconds, you can expand the E3000X with the A1/B1/E1 filter – which immediately eliminates certain harmful gases.

    E3000X Features:

    X-tended Performance: Optrel have managed to double the efficiency of the E3000X by combining a performance-optimised design with the latest Li-ion battery cell technology. With up to 18 hours of battery life and 240 litres of air per minute available at the touch of a button, the new E3000X is the perfect choice for the most powerful ventilated breathing protection system available on the market.

    X-tended Safety: The new E3000X displays you the battery charge level at the touch of a button, it then calibrates the air flow automatically, so that you can continue to work through the day safely. The E3000X also has the no filter detection feature, unlike other PAPR systems available. If the E3000X detects that the main filter is missing, an acoustic alarm will sound and if ignore the system will stop working for enhanced safety.


    X-tended Productivity: As soon as the filter in the respective air flow level is saturated, you receive an acoustic alarm and the new E3000X‘s intelligent alarm function switches fully automatically to the next lowest air flow stage without you having to interrupt the work process.

    X-tended Application Possibilities: The new Optrel e3000X PAPR system protects you reliably from particles like smoke, aerosols or dust. Furthermore, the mountain breeze odour filter keeps you free from awkward smells and insanitary ozone. In environments with hazardous or toxic gases the new A1B1E1 gas filter will be available from Q2/2020. The new e3000X adapts to your requirements.

    The E3000X offers the highest class of protection (TH3) from respirable particles (smoke, aerosol, and dust), the breathing air becomes cleaner by a factor of up to 500 and can be evenly distribution around the PAPR welding helmet or visor.

    Before using any make of PAPR system it should be checked to ensure that the adequate flow rate is being delivered. On other makes of PAPR systems a manual air flow check has to be undertaken. By the means of a built in sensor, the E3000x alleviates the need for a manual check by self-calibrating every time that its switched on making it safer and more productivity.

    The maximised particle filter area of 0.25 m2 accompanied by efficient prefilter helps to reduce the number of particle filter changes compared with other PAPR systems available. With its lower consumption of particle filter over its life time, lowers the total cost of ownership of the E3000X.

    E3000X Specification:

    Blower: High Quality Ball Bearing Long Life Brushless Motor.

    Flow rates:  Level 1: min. 170 l/min

                       Level 2: min. 210 l/min

                       Level 3: min. 240 l/min

    Battery: Li-ion Rechargeable 14.8V/3.5AH

    Charging time: Standard Battery: 5h

    Run Time: Level 1 – 170 l/min: 18h

                     Level 2 – 210 l/min: 16h

                     Level 3 – 240 l/min: 13h

    Noise Level maximum: 70dbA

    Alarm Type: Optical and audible alarm for low battery, clogged filter, no filter fitted and low air flow.

    Filter Type: TH3P R SL for TH3P system (EU)

    Hose length: 0.7 m elastic up to 1.3 m

    Dimensions (L x W x H): 222 x 213 x 92,6 mm

    Weight: 1615 g (incl. filter, belt and battery)

    Standards: EN 12941:1998/ A2.2008 + A2:2008,

                      EAC TP TC 019/2011

                      AS/NZS 1716:2012,

    Notified body: CE 1024, SAI Global

    Panoramaxx features:

    The unique nose cut-out on the Panoramaxx floats above the nose to position the auto-darkening     display closer to the eyes. This offers a 6 times larger field of vision than standard welding helmets and is still a lightweight at only 550 grams compared to 925 grams of its nearest competitor.

    The large viewing area of the Panoramaxx in combination with the 2.5 shade at light state and the Optrel True colour optics opens an entirely new visual dimension to the welding experience. The specially developed UV/IR filter allows the realistic colour perception typical of Optrel, bringing colour to the welder’s world.

    The Panoramaxx features Optrel’s patented autopilot function, the unique 5-sensor array measures the brightness of the welding arc and automatically adjusts to the correct shade level. Autopilot detection of the arc brightness and fully automated shade level adjusts automatically between 5 to 12.

    The Panoramaxx also marks the launch of Optrel’s unique new power system. Featuring a lithium-polymer power pack in combination with high-performance solar cells and an external USB charging option, the Panoramaxx is the energy independent, maintenance free choice for professional welders.

    The variable adjustment of the air flow allows for up to 20% of the air distribution in the Panoramaxx helmet to go on the forehead area, another significant contributor to the maximum comfort and reduce fatigue.

    Panoramaxx specification:

    Solar cells power supply, lithium-polymer battery also rechargeable by USB-cable.

    Battery operating time approximately 1000 hours.

    Five sensors.

    Infinitely adjustable, now with “super high” sensitivity.

    Switching time light to dark: 0.090 ms at room temperature at 55°C 0.070 ms at 55°C.

    Switching time dark to bright: 0.1 s to 1.5 s (with dimming function).

    Field of vision: Depending on headband setting, 2.3 x to 6.3 x the field of vision of a 100 x 50 mm standard industry ADF.

    Classification:  Optical class: 1

                            Scattered light: 1

                            Homogeneity: 1

                            Angular dependence: 2

    Shape stability: Welding mask: up to 220 °C / 428 °F

    Front cover lens: up to 137 °C / 279 °F

    Welding helmet weight: 530g

    Standards CE, ANSI, complies with CSA.

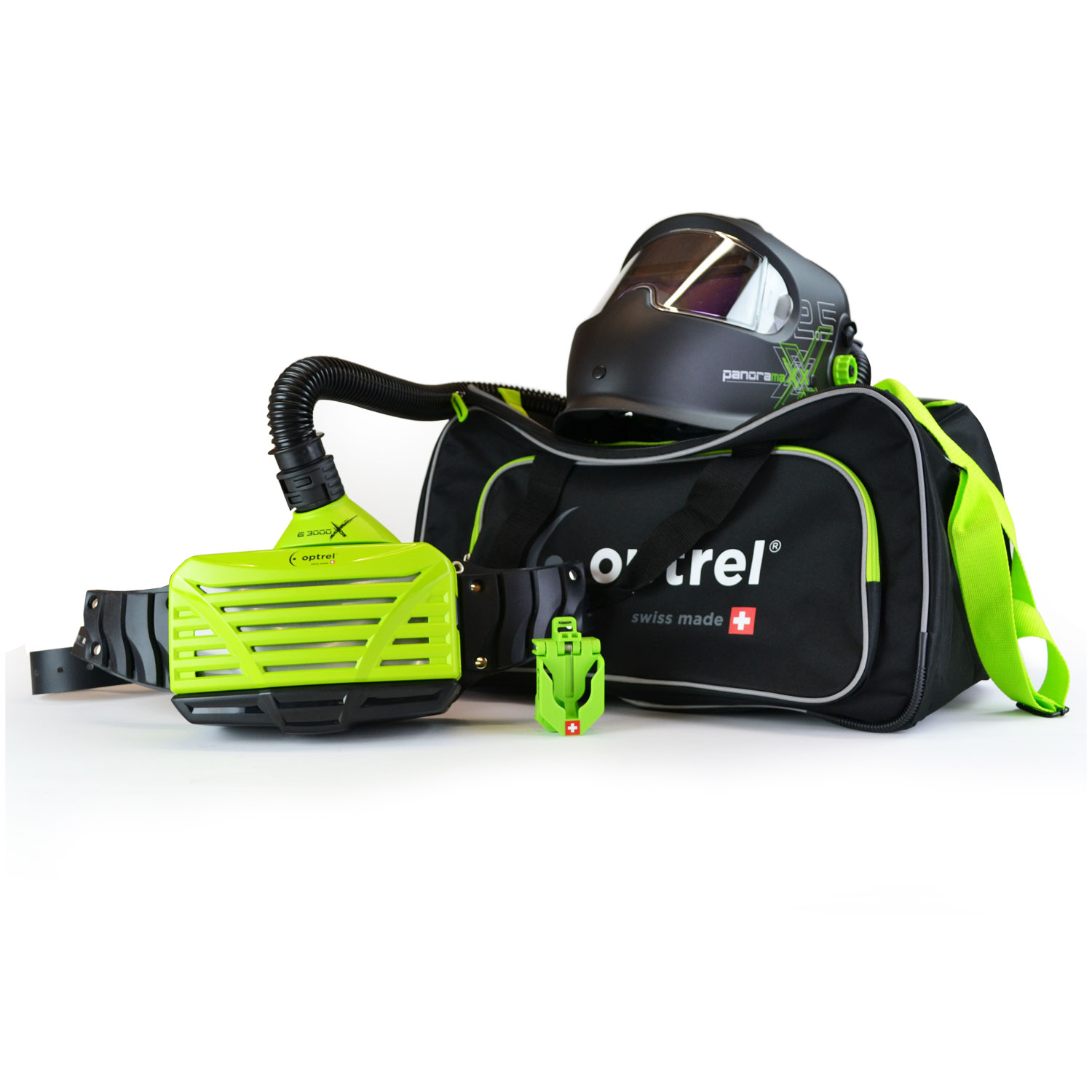

    Included as Standard: E3000X blower unit with hose, TH3P R SL Filter, 18h Li-ion Battery, Leather belt, Universal Charger, Parking buddy, Storage bag, User Operating Instructions and Panoramaxx PAPR Welding Helmet.

    2 years from date of sales for manufacturing and material defects, 6 months warranty for battery.
