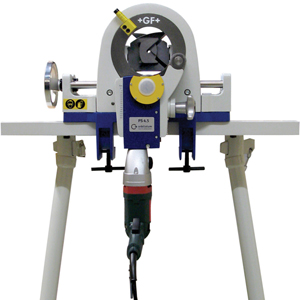

Orbitalum PS 4.5 Portable Tube Cutting Saw
Tube cutting made easy! For cutting thin-walled stainless-steel tubes and elbows using the superior ‘Planetary Cutting Technology’.
Deformation-free clamping system by integrated clamping jaws made from hardened aluminium-cast for different tube diameters to provide flexibility for on-site applications.
No rework necessary because of a burr-free and square cut.
Cold cutting process prevents corrosion.

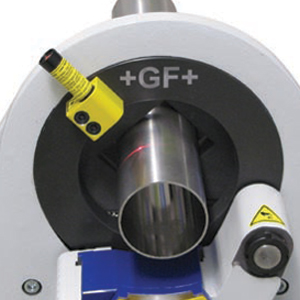

Integrated laser pointer to determine the cut-off point.
Orbital cutting process saves time.
Speed: 30 – 160rpm
OD Tubes 6 – 120mm
OD Elbows: 30 – 120mm
Max. Wall Thickness: 3mm
Dimensions: 480 x 230 x 600mm
Vibration Level (EN 28662, part 1): < 2.5m/s2
Sound pressure level at workplace: approx. 75 dB (A)
Included as Standard: Aluminium Clamping Jaws, Robust Case, Saw Blade, Tool Bag with Tools & Tube of Saw Blade Lubricant
* Available with press fitting blade/bevel combination cutters.
