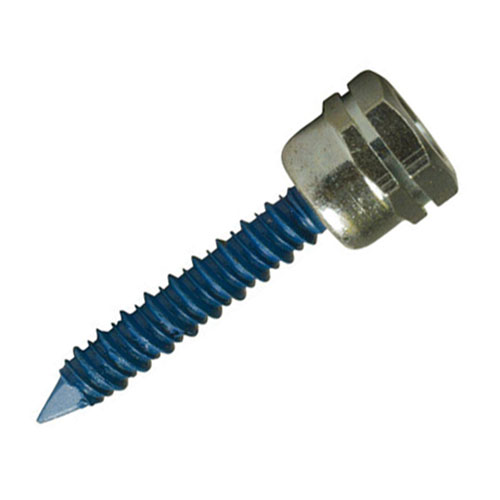

M8/M10 X 35MM TAPCON ROD HANGERS
Code: 25115
Part No: 058785SPI
Quantity per box: 100
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:8 x box
£88.55 box
exc. VAT
£106.26 box
inc. VAT
Add to order


Product Overview

  • Self tapping rod hanger for fixing into concrete and pre-cast concrete.


    Faster alternative to traditional drop-in anchors, designed specifically for over head threaded rod applications.

    No setting tool is required. The anchor does not expand, therefore a fixing can be achieved close to an edge. 35mm embedment avoids rebar.

    Perfect for the installation of cable tray, duct work and air conditioning units.

    ETA Option 1 approved anchor for cracked and non-cracked concrete.

    New patented thread design for increased load and fast installation.

    Suitable for use in hollow concrete slab.

    Dual M8/M10 thread.

    Fire rated up to 2 hours.

    Non-flammable steel fixing which conforms to BS 7671:2018 – 18th edition; for supporting wiring systems using materials which are unlikely to collapse prematurely in the event of a fire.



    Code

    Thread Diameter

    Anchor Length

    Drill Bit Size

    Minimum Embedment

    Hex Socket

    25115

    M8/M10

    35mm

    6mm

    35mm

    13mm



    nb. ‘Thread Diameter’ relates to the diameter of threaded rod to be screwed into the anchor. The masonry anchor tapping thread requires the same pilot hole diameter for all sizes.
