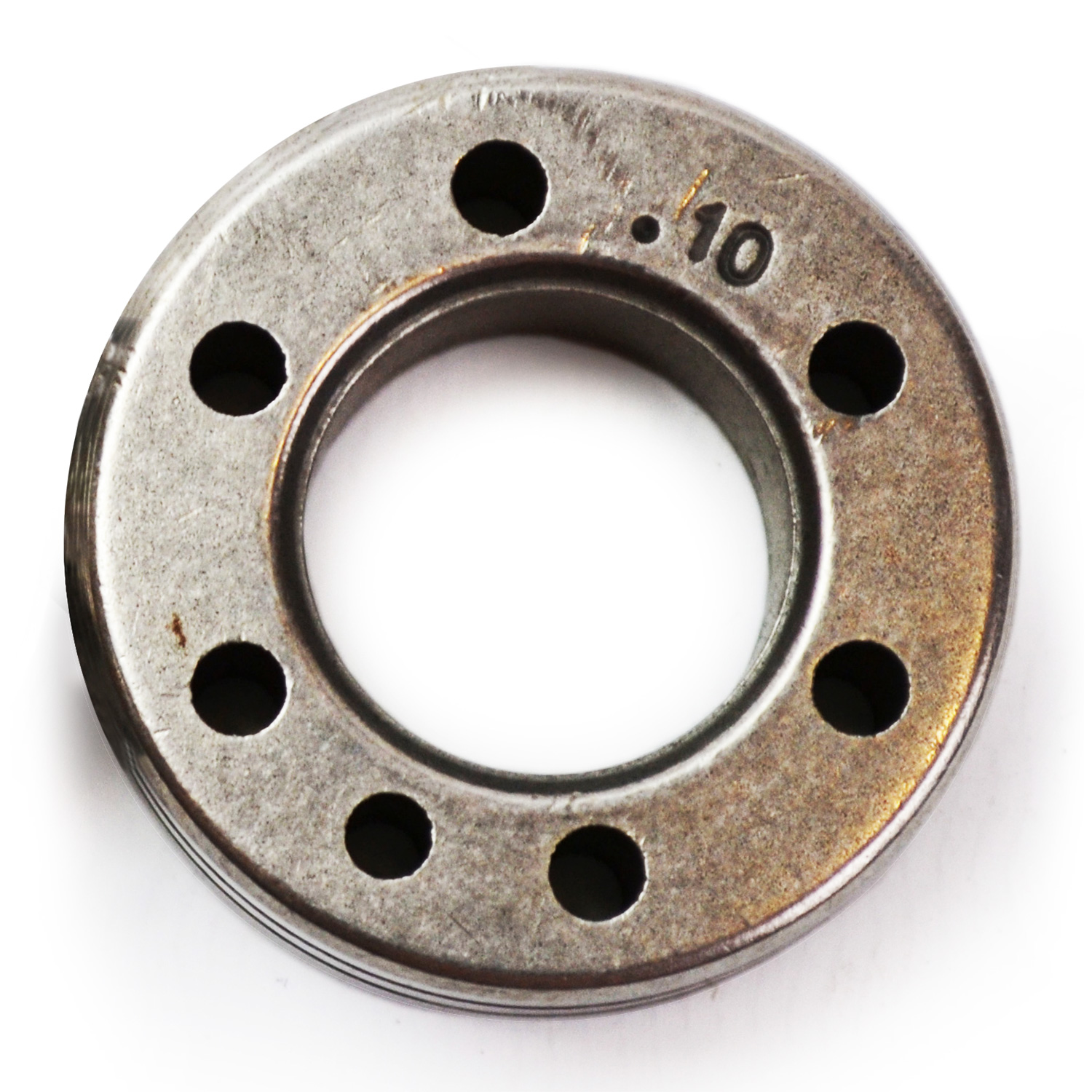

Trafimet Easy 400 Cold Wire Feeder U Groove Feed Rollers
The Trafimet Easy 400 Classic cold wire feeder U groove feed rollers are manufactured from tool steel to deliver a much longer service life, when compared to that of other lower cost feed rolls often manufactured from nylon. U-groove drive rolls are designed for use with softer filler wires, such as aluminium. When using soft wires it’s important not to mar or flake the wire surface, the U-groove drive rollers also help to feed the wire through the liner whilst keeping the wire’s round shape and helping to prevent deformation of the wire
Easy 400 feed rolls are reversible allowing two different wire diameter sizes to be feed from each roller.
Each roller is marked with the wire diameter on both sides of the roller, when mounted in the feeder wire diameter visible is the size of wire which should be fed.
No tools are required to change the Easy 400 drive rolls.
47136 1.0 – 1.2mm U Groove Trafimet part number FA0203
47137 1.2 – 1.6mm U Groove Trafimet part number FA0204
