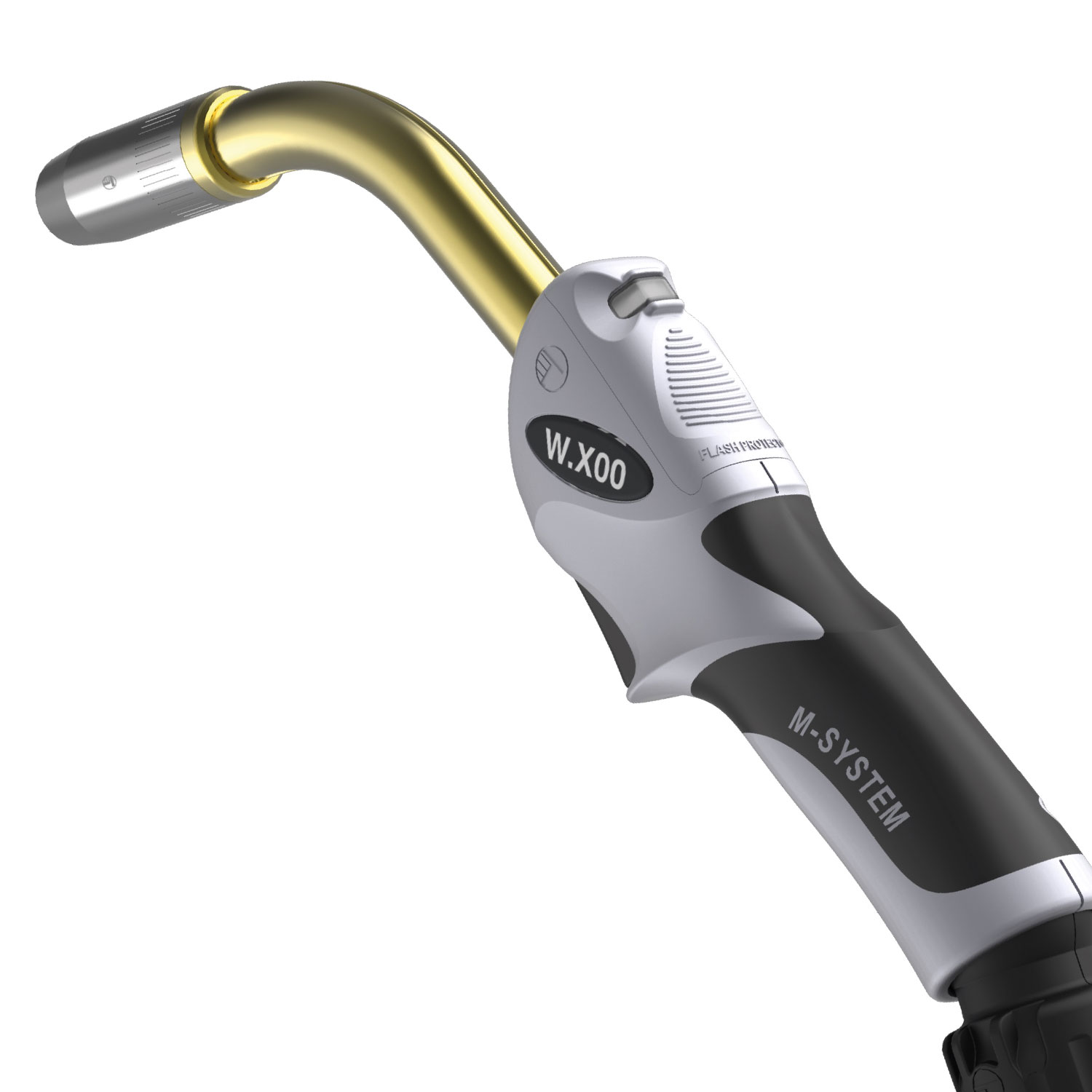

Trafimet M-System W.X00 Water Cooled MIG Torch 400A
Trafimet M-System W.X00 Water Cooled MIG Torch 400A has an integrated protection called FLASH PROTECT. This is a new safety system fitted on all the M-System torches. Once the trigger is pressed on the M-System torch, the FLASH PROTECT system emits a signal to the ADF lens. This darkens the ADF lens just moments before the welding arc is activated. When the arc is created, the filter is already darkened, ensuring perfect protection. The innovative Trafimet M-System MIG torches are designed to guarantee maximum performance, with improved ergonomic solutions and introduce new safety standards for the welder. This new design makes the torch extremely manageable and perfectly adaptable to all working conditions, even the most extreme welding applications. The M-System torches are in compliance with European directives EN 60974-7.
The new handle design offers less fatigue for the welder. The self-cleaning trigger contacts offer greater reliability and the anti-slip grip guarantees the welder a safer grip.
The new double joint improves performance when compared with other torches on the market.
The double joint allows a unique freedom of movement with up to 60° arc rotation, that guarantees the best ergonomics and handling.
The M-System torch has a double cooling circuit: one for cooling the tip and the other one for cooling the nozzle.
The cooling liquid flow rate has been increased compared to equivalent torches on the market. As a result, the torch can be used with high amperages and heavy-duty job cycles without heating up, which considerably extends the life and reduces the consumption of spare parts.
The new water cooled M-System guarantees maximum flexibility from a single torch, a modular range of wear parts for welding at different amperages, up to 650A can be fitted,
The W.X00 400A torch is supplied with the 400A starter kit but it can be fitted with a 500A or 600A starter kit. This allows the torch to be customised and fitted with the most suitable wear parts and liner for various amperage applications if required.
Wire diameters: 0.8mm to 2.4mm
Duty cycle @ 100%: 450A in CO2, 400A in mixed gases.
