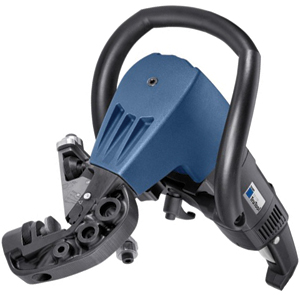

TRUMPF TruTool TKF1100 Beveller

Sorry, this product has been discontinued
Calculating latest stock


Product Overview

  • TRUMPF TruTool TKF1100 is ideal for producing highly precise and emission-free bare metal K, V, X and Y edges.


    Features:

    Especially designed for stainless steel and high-strength steel processing.

    The edges remain free of oxide and there is no need for seam work.

    Weld joints can be made both on straight sheets and on tubes, interior cutouts and curved edges.

    The machine can be positioned in the middle of the sheet.

    Progressively adjusted bevelling height and tool-free setting of the sheet thickness characterize this beveller.

    Mounting brackets for bevel angles of 30°, 37.5° or 45°.

    Adjustable motor handle provides optimal operating comfort.

    Processes pipes with a minimum inside diameter of 80mm.

    Bevels inside cutouts starting 80mm diameter and curved edges with a minimum radius of 40mm.

    Specification:

    Max. Bevel Height

    Steel 400N/mm² 7.8mm

    Steel 600N/mm² 6.4mm

    Steel 800N/mm² 4.2mm

    Max. Bevel Length

    Steel 400N/mm² 11mm

    Steel 600N/mm² 9mm

    Steel 800N/mm² 6mm

    Sheet Thickness: 3mm – 25mm

    Working Speed: 2m/min

    Input: 1400Watt

    Strokes at Nominal Load: 320 1/min

    Weight: 9.9kg
