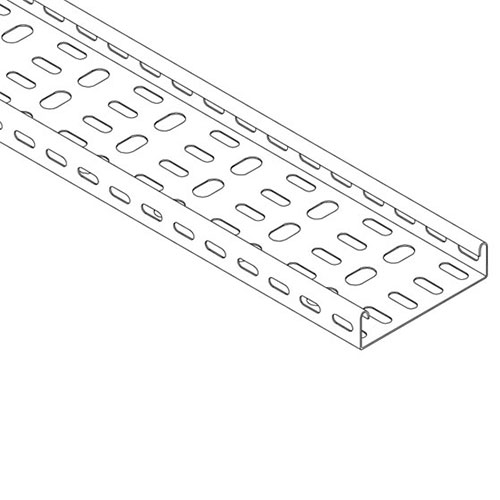

Unistrut TUMLT M-25 Medium Duty Return Flange Cable Tray
Product Overview
-
Unistrut has been the leading supplier of metal framing and cable management systems since 1924 and is synonymous with engineering excellence and reliability worldwide. Original and genuine Unistrut items are consistently premium quality with full accountability, traceability and liability coverage.
Read more
Features:
Cable tray is an ideal solution when installing any types of cables that need to be supported safely.
Various accessory options ensure project needs are met.
Designed to be quick and simple to assemble, providing real time savings.
Unrivalled quality and durability for maximum reliability throughout its life cycle.
Pre-galvanised finish as standard; other finishes available upon request.
Load tested in accordance with CEI/EC 61537:2001

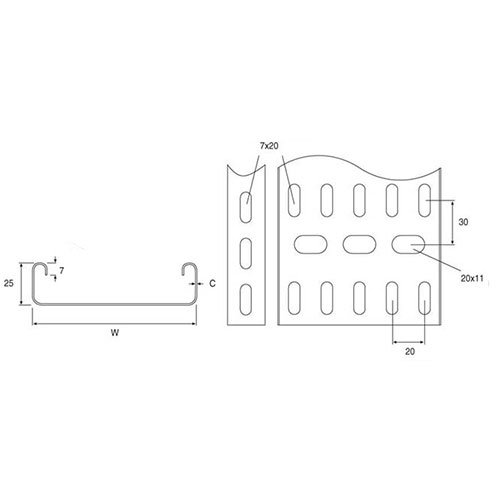

Specification:
Side Height: 125 mm
Width: 150 – 900 mm
Length: 3 metres
Finish: Pre-galvanised
Code
Finish
Size
Length
C mm
Weight
04849
PG
50mm
3M
0.8
2.02
04850
PG
75mm
3M
0.8
2.48
04852
PG
100mm
3M
0.8
2.93
04854
PG
150mm
3M
0.8
3.72
04856
PG
225mm
3M
0.8
4.97
04858
PG
300mm
3M
0.8
9.13
04860
PG
450mm
3M
1.2
12.82
04861
PG
600mm
3M
1.2
16.50
