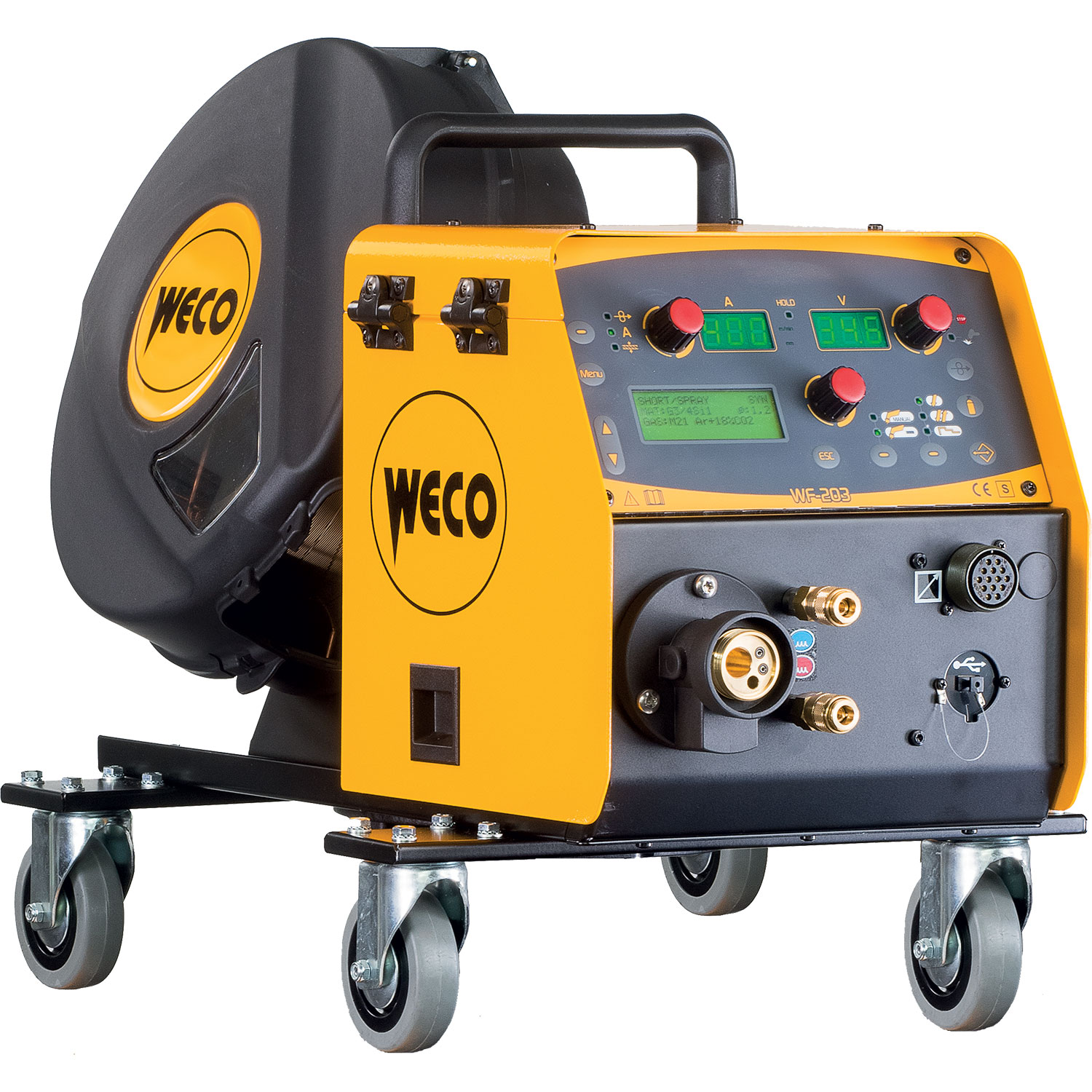

Weco WF 203 Wire Feeder

Calculating latest stock
WECO WIRE FEEDER WF203 W/C 42VDC
Code: 12015
Manufacturers Part No: 001.0329.0000
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:6
£1,211.95 each
exc. VAT
£1,454.34 each
inc. VAT
Add to order


Product Overview

  • The Weco WF-203 wire feeder is equipped with an extremely simple and user friendly control panel, this ensures quick and easy access to all of the features incorporated on the feeder.


    Features:

    Burn back Wire cut, a neat end is produce on the wire at the end of each welding operation, this eliminates a ball of metal forming at the end of the wire. This ensures an optimal next strike and reduces the amount of spatter being produced.

    Soft Start: The approaching speed of wire and welding dynamics are totally synergic giving extremely low spatter at start, on most types of material.

    Easy to select synergic welding curves, simply set the desire synergic curve, select main welding parameter, set main welding parameter, and you are ready to weld.

    4 Roll wire feed system with adjustable wire feed pressure to ensure uninterrupted wire feeding on a variety of wire types.

    Pre and Post gas delivery for before the welding arc is created and after the welding arc is extinguished,  this helps to create an uncontaminated atmosphere. This is useful when welding at high current values or with materials that oxidise readily when the weld pool cools.

    Gas flow adjustment button opens the gas solenoid valve to fill the circuit and calibrate the pressure with the regulator and flow meter on the gas cylinder.

    Various torch trigger selections are available to ensure the best possible results on more difficult to perform processes. 3T special allows you to set and recall 3 different current levels by pushing the trigger switch in order to achieve top quality weld beads, highly recommended when aluminium welding.

    Personalized welding settings, or jobs can be stored in the memory locations and can subsequently be uploaded when required, up to 99 jobs can be saved. This function is unrivalled when application repeatability is required and set welding parameters need to be achieved.

    Locking facility, this procedure inhibits unit adjustments, allowing the user to modify only certain settings depending on the selected lock status, this prevents accidental alteration of the welding settings by the operator, helps to set welding parameters.

    Euro adaptor connector for  MIG/MAG torch connection.

    Specification:

    Supply voltage: 42 VDC.

    Work duty cycle: 450 amp @ 100 %

    Motor speed: 1.5 – 24.0 m/min

    Maximum Wire spool: (dimensions/weight) 300 mm / 18 kg

    Feed Roller size: 37mm

                                    Fe 0.6 – 1.6 mm

                                    Al 0.8 – 3.2 mm

                                    FCW 1.0 – 3.2 mm

    Dimensions ( L x D x H ) 385 x 690 x 440 mm
