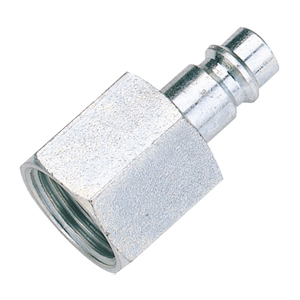

1/4" BSP Female Thread PCL Euro Coupling Adaptor

For use with air tools and hoses with a ¼” BSP thread.

Tested to over 1 million cycles.

Connects to most popular and European adaptor profiles.

Zinc passivated to significantly improve corrosion resistance.

Flow capacity at 6 bar inlet and 0.5 bar pressure drop: 78cfm (2200L/min)

Maximum working pressure: 500psi (35 bar)

Test pressure: 725 psi (50 bar)

Maximum burst pressure: 2030 psi (140 bar)

Temperature range: -40 to 100°C

Nominal airflow diameter: 7.4mm
