Alumina Nozzles for Tigama & WP 17,18 & 26 Type TIG Torches
Product Overview
-
Alumina Oxide gas nozzles are the most popular TIG cups, they are made from high-temperature shock-resistant alumina oxide that is injection moulded and when fired they turn pink in colour. 90% of all welding applications use alumina cups.
Read more
Ceramic nozzles provide a given amount of shielding gas coverage to the weld pool, according to their size, a smaller nozzle provides less gas coverage than a larger one.
Ceramic nozzle orifice sizes are normally denoted by a number which relates to 1/16” (1.6mm) increments, for example a No 6 nozzle would relate to 6 x 1/16” = 3/8” (9.6mm).
Parts fit direct to the Tigama 17,18 & 26 torches when fitted with a WP type standard collet body, they are also compatible with WP17,18 & 26 type torches.
Equivalent to Size 5 – 10N49
Size 6 - 10N48
Size 7 - 10N47
Size 8 - 10N46
Size 10 – 10N45
You might also be interested in...
-

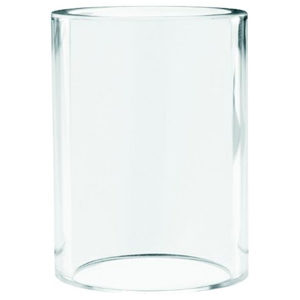

CK Gas Saver Clear Pyrex Nozzle For Tigama 70 Micro TIG Torc
