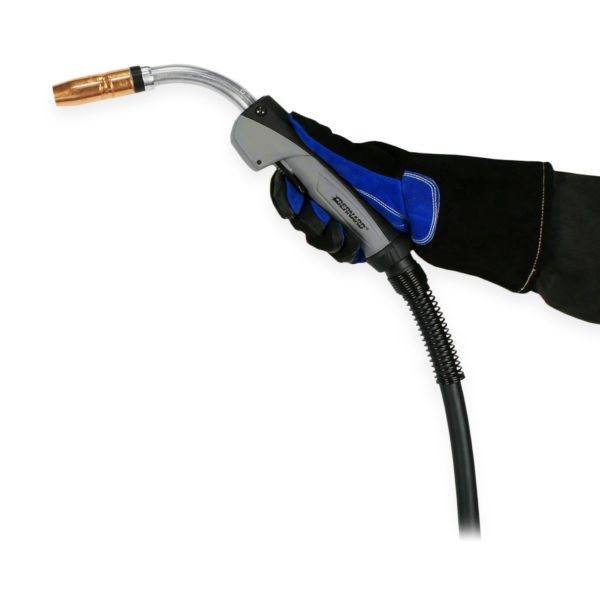

Bernard C Handle Q Type MIG Torch 400A
Bernard semi-automatic air-cooled Q type MIG torches are at the performance end of the market and are manufactured with heavy duty power cables, which provide a 60% duty cycle in mixed gases. The Bernard Q torches are available from 200 to 600A torch and are fully industrial-duty allowing them to carry on welding even in the harshest and most arduous environments. The Q guns are also supported with a common line of high-performing consumables, which helps simplify ongoing maintenance and reduces inventory costs.
C handle – The handle has an over mould and swivel at no extra cost! which offers the welder greater comfort in all positions.
Heavy Duty Strain Relief – The torch has a heavy-duty strain relief, helping to ensure easier trouble-free wire feeding, it also helps to protect the power cable from bending and kinking at the euro connection.
Quik Torch Neck – The necks are aluminium armoured and are designed to withstand the day to day environments.
Quik Contact Tips – Designed with a threaded taper lock, giving a large contact area between the contact tip and gas diffuser. No tools are required, just a quick twist is all it takes to the install & remove the Bernard Quik Tip contact tips! Quik Tip Consumables are designed to reduce downtime during the welding process, increase productivity and reduce operation costs.
Quik Gas Diffusers – Designed with a positive stop which secures the contact tips in a fixed position for consistent quality welds.
Quik Thread System – Quik shrouds are available in two orifice sizes 19mm (3/4”) and 16mm (5/8”) for optimal shielding gas coverage. The shrouds also have the Quik thread system, facilitating faster shroud change and increased service life.
Quik Load Liners – Innovative ‘Quick Load’ eliminate the need to remove the MIG welding torch from the wire feed unit.
Built into the heavy-duty power cables are four switch leads, should the two being used get damaged, then the other two can be utilized.
400amps @ 100% Duty Cycle in CO2 Gas, 60% in mixed Gases.
(According to EN 60 974-7)
Cable Length: 15 ft (4.57 m)
Exclusive 1 year warranty on all configured MIG guns.
