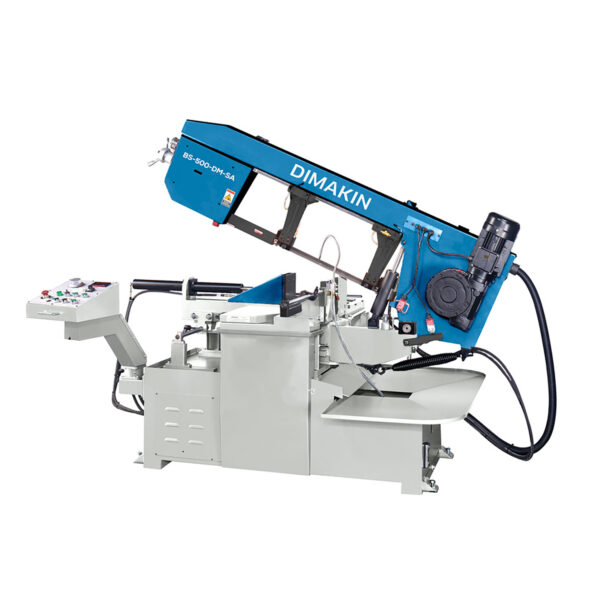

Dimakin BS-500-SA Horizontal Bandsaw Machine
The BS-500-SA is the largest Dimakin dual mitre Semi-Automatic Band saw and is capable of cutting various metals up to 330mm round,330mm square and 330x460mm Rectangle. The dual mitre function on the BS-500-SA allows you to cut angles from 90-60 degrees right and 90-45 degrees left. With a variable blade speed ranging from 21-93 meters per minute this allows the operator to set the right feeds and speeds to suit the material being cut. This helps to increases blade life and reduce operating costs.
Robust and Powerful
Suitable for medium/high-output fabrication workshops.
Hands-free controlled bow descent.
Precision blade speed.
Mitres up to 60° left, 45° right.
34mm blade depth for precise cutting.
Coolant system as standard to extend blade life.
Blade tension gauge.
Quick locking vice.
Blade stops automatically when cut is finished.
Cutting degree: Round 90° / 45° / 60° / 45L° = 330 / 305 / 215 / 305mm
Cutting degree: Square 90° / 45° / 60° / 45L° = 330 / 305 / 215 / 305mm
Cutting degree: Rectangular 90° / 45° / 45L° = 330×460 / 330×270 / 315×195/ 330x270mm
Variable Blade Speed: 21m to 93m/min
Vice Opening: 500mm
Motor: 2.25 Kw
Power Requirements: 415 Volt, Three Phase
Hydraulic Controlled descent
Blade Size: 4130mm x 34m x 1.1mm
Measurements: 2270 x 900 x 1670mm
