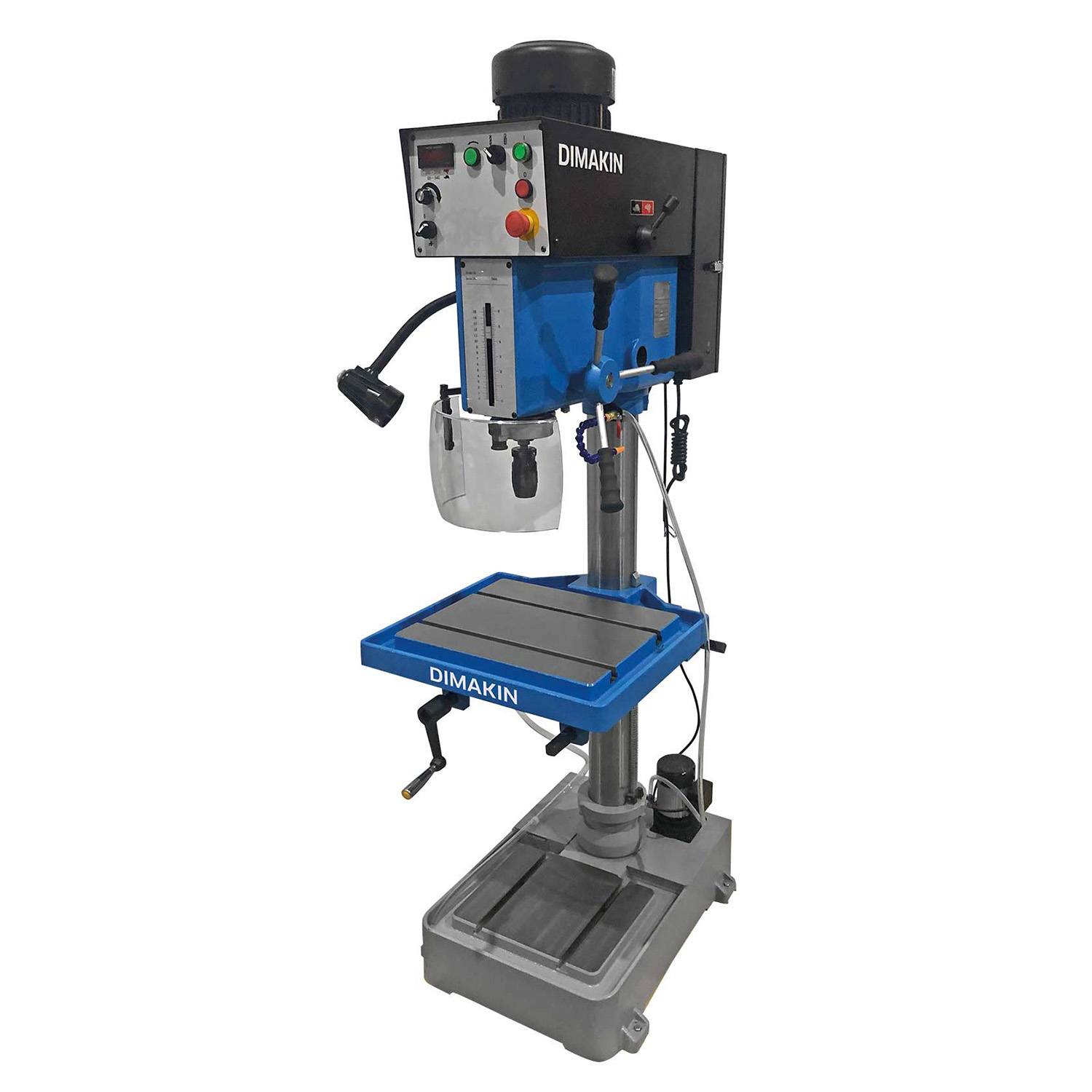

Dimakin DP-3175-M Pillar Drill
The DP-3175-M is a variable speed MT3 pillar drill press has a very large diameter column to eliminate flexing when drilling at top capacity. Both base and table are made from a super rigid casting adding to the strength of this 25mm drilling machine. An inverter drive within the drill head allows any engineer or fabricator to run tooling at the correct speed for selective drill or tap size available. The DP-3175-M comes with a coolant system, guarding and a work lamp as standard.
Robust column for perfect accuracy and zero flexing.
Heavy duty build quality for years of fabrication.
Inverter driven head for precise control.
Manual quill feed.
Fully integrated coolant system.
Fully adjustable LED work light as standard.
Safety guard with limit switch shut off.
Spindle Taper: MT3
Drilling Capacity: 40mm steel/45mm cast iron.
Tapping Capacity: 19mm steel/24mm cast iron.
Spindle Travel: 150mm
Spindle Nose to Table: 850mm
Spindle Nose to Base: 1160mm
Spindle Speed: 65-540RPM (low) or 245-2000RPM (High)
Spindle/Quill Diameter: 75mm
Column Diameter: 115mm
Table Size: 560mm x 470mm
Base Size: 485mm x 685mm
Table Slot: 16mm
Motor: 1.5Kw (2hp)
Power: Single phase
Shipping Dimensions: 285kg 960 x 578 x 2030mm
