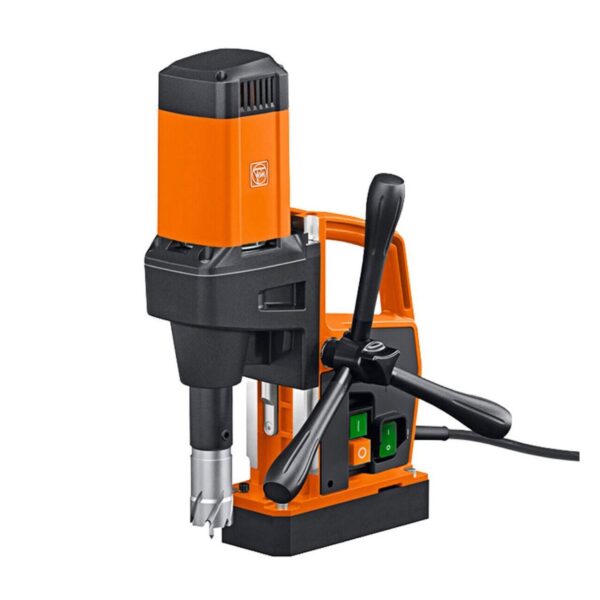

Fein KBE32 32mm Endurance Magnetic Core Drill

Calculating latest stock


Product Overview

  • The Fein KBE 32 is a powerful but small and extremely lightweight magnet core drill with a single speed gear box and basic functions for core drilling up to 32mm Ø and at a depth of 50mm, either in the workshop or site.


    Read more

    Features:

    Lightweight with the FEIN high-power motor and high torque for all core drilling tasks up to 32mm Ø

    The feed handwheel on the KBE 32 can be moved from one side of the machine to the other offering good accessibility in cramped operating situations, allowing the machine to be used in confined spaces.

    The extremely durable single speed gearbox design offers an operating time of up to 400 hours of compromised service life.

    Designed for use in tough environments thanks to the outstanding quality of workmanship and the internal motor cable guide.

    The Fein KBE 32 offers excellent price / performance ratio.

    Internal cooling.

    High magnetic holding force.

    Good accessibility in cramped operating situations.

    Specification:

    Power Input: 1,200 W

    Power Output: 770 W

    Core drill holder: 3/4" Weldon

    Speed, full load: 450 rpm

    Speed, no load: 700 rpm

    Maximum Core drill: Ø 32 mm

    Maximum HSS core drill: Ø 32 mm

    Maximum Core drill, drilling depth: 50 mm

    Stroke: 90 mm

    Magnetic holding power: 10,000 N

    Magnetic foot dimensions: 175 x 80 mm

    Cable with plug: 3 m

    Weight according to EPTA: 10.80 kg.

    Vibration value 1 αhv 3-way: 0,9 m/s²

    Uncertainty of measured value Kα: 1,5 m/s²

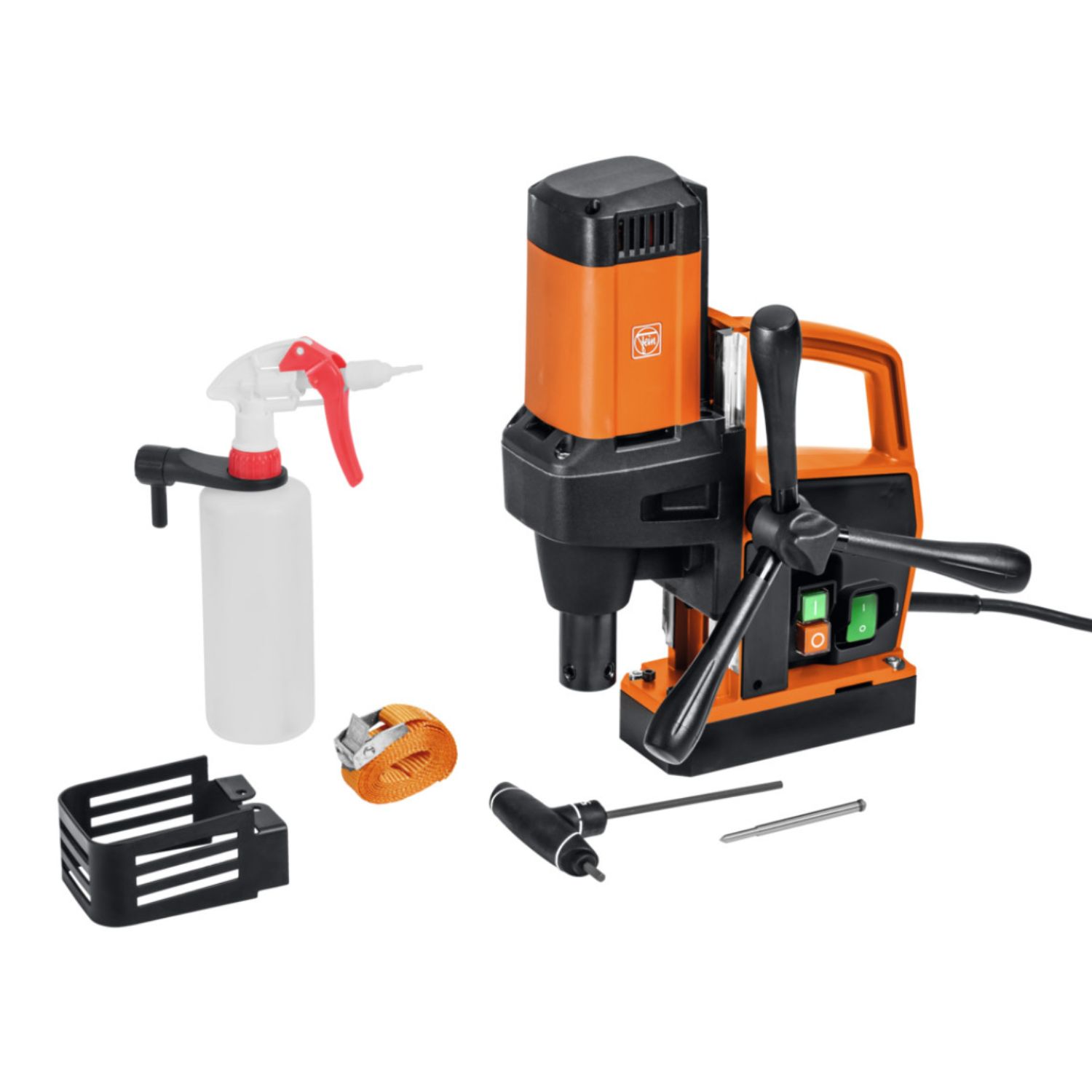

    Included as Standard: 1 Magnetic Core Drill, 1 Coolant Bottle, 1 Lashing Strap, 1 Centring pin 100 mm, 1 Contact Guard, 1 x 5 mm Hexagon Socket Wench with T-handle & Case.

    3 Years Warranty on all Fein Power Tools when registered.
