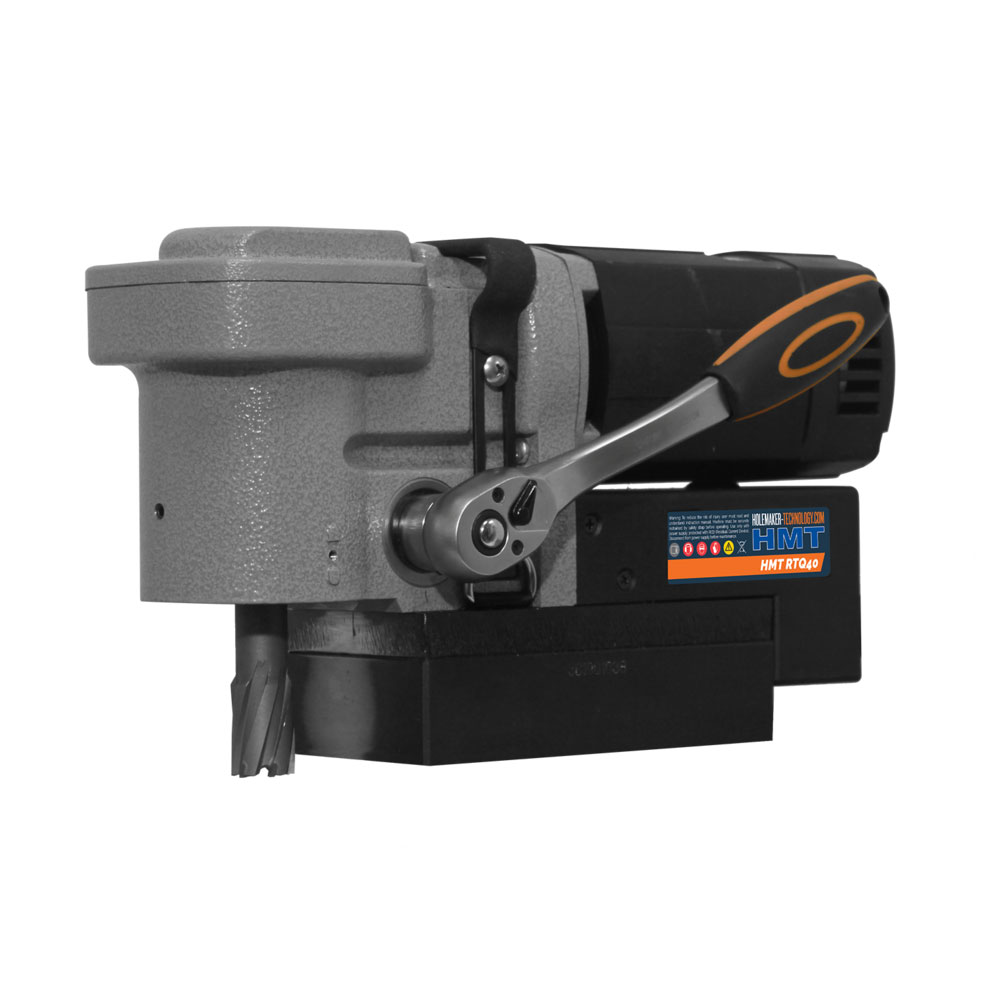

HMT RTQ40 Low Profile Magnetic Drilling Machine

Sorry, this product has been discontinued

Calculating latest stock

Product Overview

The HMT RTQ40 is a low profile, extremely small and light weight single-speed compact magnetic core drill machine for use in tight to access applications. The HMT RTQ40 has been designed to fit into any space greater than 180mm heigh and 310mm in length. Its ideally suited for use with any the standard broaching cutters, but its high 700 rpm speed makes it optimised to work with the high-performance CarbideMax 40 cutters.

Read more

Features:

Suitable for use with any standard broaching cutters while optimised to work with the high-performance CarbideMax 40 cutters.

Ratchet drive can be mounted on either side of the machine.

Powerful motor and magnet gives excellent stability.

Quick-change 19.05mm 3/4" arbor for all standard broaching cutters.

Specification:

Core drill diameter capacity: 12-40mm

Maximum core drilling depth: 35mm

Maximum Twist Drill Capacity: 13mm

Stroke: 40 mm

Input: 1,050 W

Speed no load: 700 rpm

Magnetic holding power: 1200kg

Machine Dimensions (L x W x H): 310 x 135 x 180mm

Magnet dimensions (L x W x H): 160 x 80 x 37mm

Weight: 10.8kg

Included as Standard: Hex Keys, Safety Strap, Ratchet, Removable Coolant System and Case.

1 Year Warranty.
