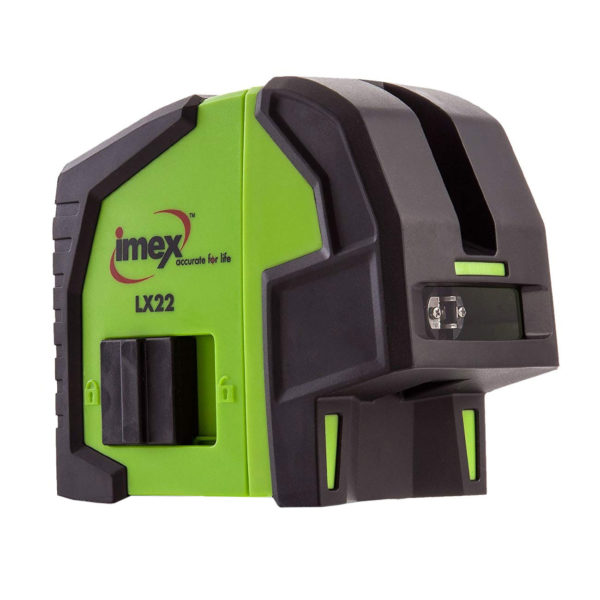

Imex LX22G Cross Line & Plumb Green Beam Laser Level
Product Overview
-

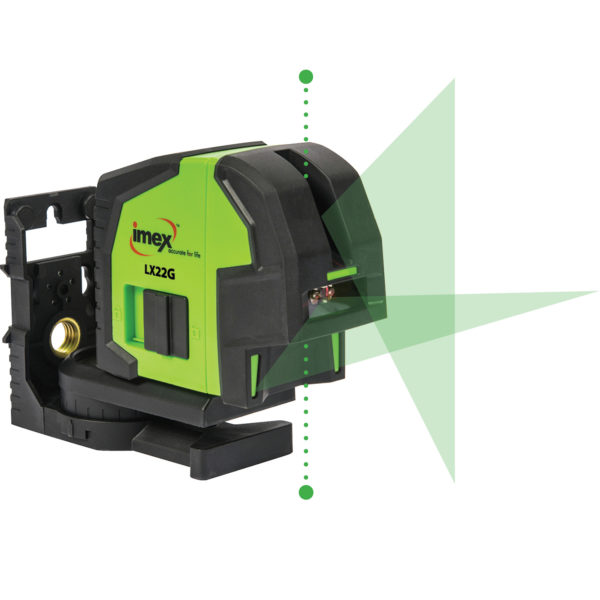

The Imex LX22G Cross Line Green Beam Laser Level projects sharp highly visible vertical and horizontal lines; ideal for a multitude of levelling applications. The laser also features up and down plumb dots for even more versatility in use.
Read more
Features:
Cross Line:
- 1 x vertical line.
- 1 x horizontal line.
- Plumb spot
Green ‘hyperbright’ beams ensure ultimate visibility.
Self-levelling with lock mode for fixed angles.
Range: Up to 40 metres radius or 55 metres with a detector.
Run time of up to 8 hours with all beams.
Used with four standard AA alkaline batteries
Drop tested to one metre and oven tested to 50°C.
Supplied with a magnetic wall bracket.
Applications:
Shop fitting and cabinet installation.
Wall and floor tiling.
Wall Partitions.
Electrical switch and light placement.
Steel fabrication alignment and set out.
Interior decorating.
Window and door placement.
Specification:
Light source diode: 515nm Green diodes
Output: Laser Class II
Accuracy: +/- 2mm @ 10m and also amend working distance to Up to 40m etc.
Beams: 1 x horizontal, 2 x vertical plumb spot up and down
Damping type: Self levelling – magnetic
Hours of continuous use: Approx. 8 hours – al lasers
Working distance: 30m radius or 55m with detector
IP rating: IP54

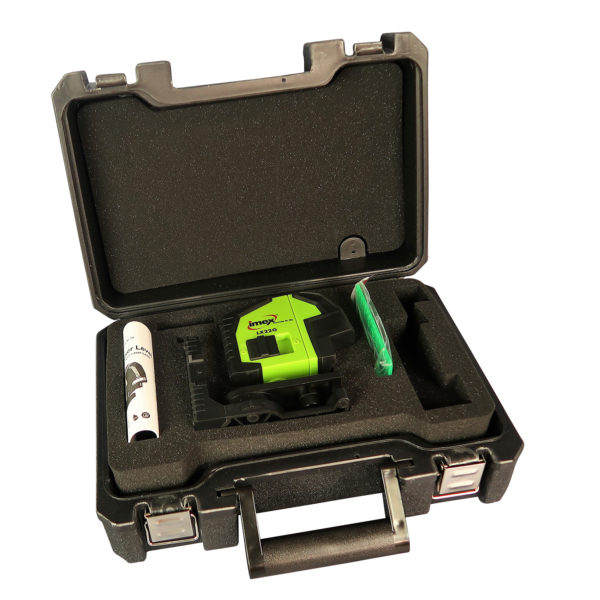

Included as Standard: Magnetic Wall Bracket, Target Plate & Carry Case.
3 Years Warranty on all Imex Line Lasers when registered – excluding L2GS.
