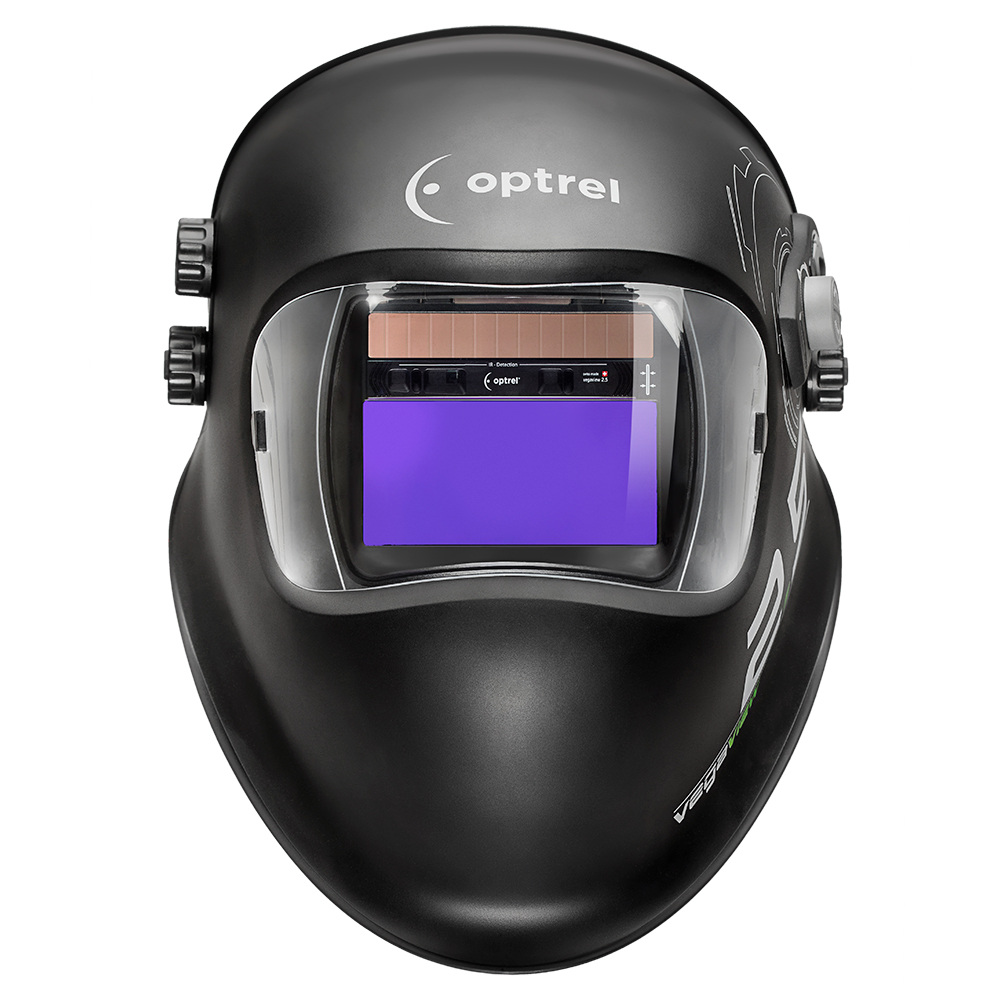

Optrel Vegaview 2.5 Auto Darkening Head Shield

Calculating latest stock
Code: 73147
Manufacturers Part No: 1006.600
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
£257.06 each
exc. VAT
£308.47 each
inc. VAT
Add to order

Product Overview

  • The Vegaview 2.5 welding helmet opens up a whole new visual experience when in light state. The much brighter view of the working environment increases both safety and efficiency.  You’ll be amazed at how bright, the new lens is 4 times brighter in light state than a traditional auto-darkening lens offering greater situational awareness, especially in dark work spaces. You’ll also fall in love with Optrel true-color view, imagine seeing real colors before you strike the arc.


    With Optrel optic technology you can enjoy a detailed and true-colour view of the welding process at shade levels 8-12.

    Overhead Welding is no longer a problem due to the optimized form of helmet and protection glass, spatter and sparks do not lay on display but are guided around.

    Grind mode is activated by simply clicking the grind mode button on the outside of the helmet, you can how see your surroundings in light state 2.5.

    Outside adjustment of the shade level allows the shade levels to be adjusted during the welding process without the need to remove the helmet.Vegaview 2.5 can be used for various welding applications with adjustable shade levels from 8 to 12.Sensitivity adjustmentallows the sensitivity to be tuned to the optimum position for your personal environment.The comfort head band allows ideal weight distribution and reduces loads on head and neck to a minimum.Patented eccentric adjustment allows a position of the opened helmet in perfect distance to the chin of the welder to reduce glare under the helmet.The patented sensor slide allows the detection angle to be reduced from 120° to 60° to prevent the ADF from responding to welding nearby. The opening delay function controls the shutter delay time after welding, helps to protect the welders eyes and reduce eye fatigue.


    Power supply 2 pcs Li-batteries 3V exchangeable.(CR2032)

    Battery operating time approximately 3000 hours.

    3 sensors, variable detection angle with movable sensor slider.

    Switching time light to dark: 0.100 ms at room temperature 0.070 ms at 55°C / 131°F

    Switch time dark to light: from 0.1 s to 1.0 s adjustable.

    Classification; Optical class: 1

    Scattered light: 1

    Homogeneity: 1

    Angular dependence: 2

    Shape stability  Welding mask: up to 220°C / 428°F

    Front cover lens: up to 137°C / 279°F

    Welding helmet Weight: 482 grams

    Standards CE, ANSI, complies with CSA

    Warranty 2 years (except batteries) + 1 year warranty extension for online product registration within the first 6 month.
