Spit High Performance Safety Anchor – Nut Thread

Name: Spit High Performance Safety Anchor - Nut Thread
SKU: 95394
Availability: InStock

Calculating latest stock

Product Overview

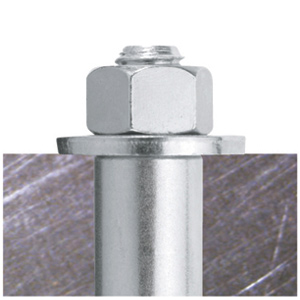

The Spit Triga Z is a patented heavy duty high performance anchor designed for safety critical applications in concrete & solid stone.

The Triga Z is the specifiers solution for cracked and non-cracked concrete, meeting the European Technical Approval option 1 – the highest standard achievable for a mechanical anchor. The Triga Z is also CSTB Fire Tested.

Perfect for crane rails, fire escapes, safety barriers, channel supports, machine mounting and pallet racking.

Code	Thread Diameter	Anchor Length	Max. Fixture Thickness	Drill Bit Size	Min. Drill Depth	Hex Nut
25078	M8	99mm	20mm	12mm	80mm	13mm
25079	M10	114mm	20mm	15mm	90mm	16mm
25080	M12	132mm	25mm	18mm	105mm	18mm
25081	M16	159mm	25mm	24mm	131mm	24mm
