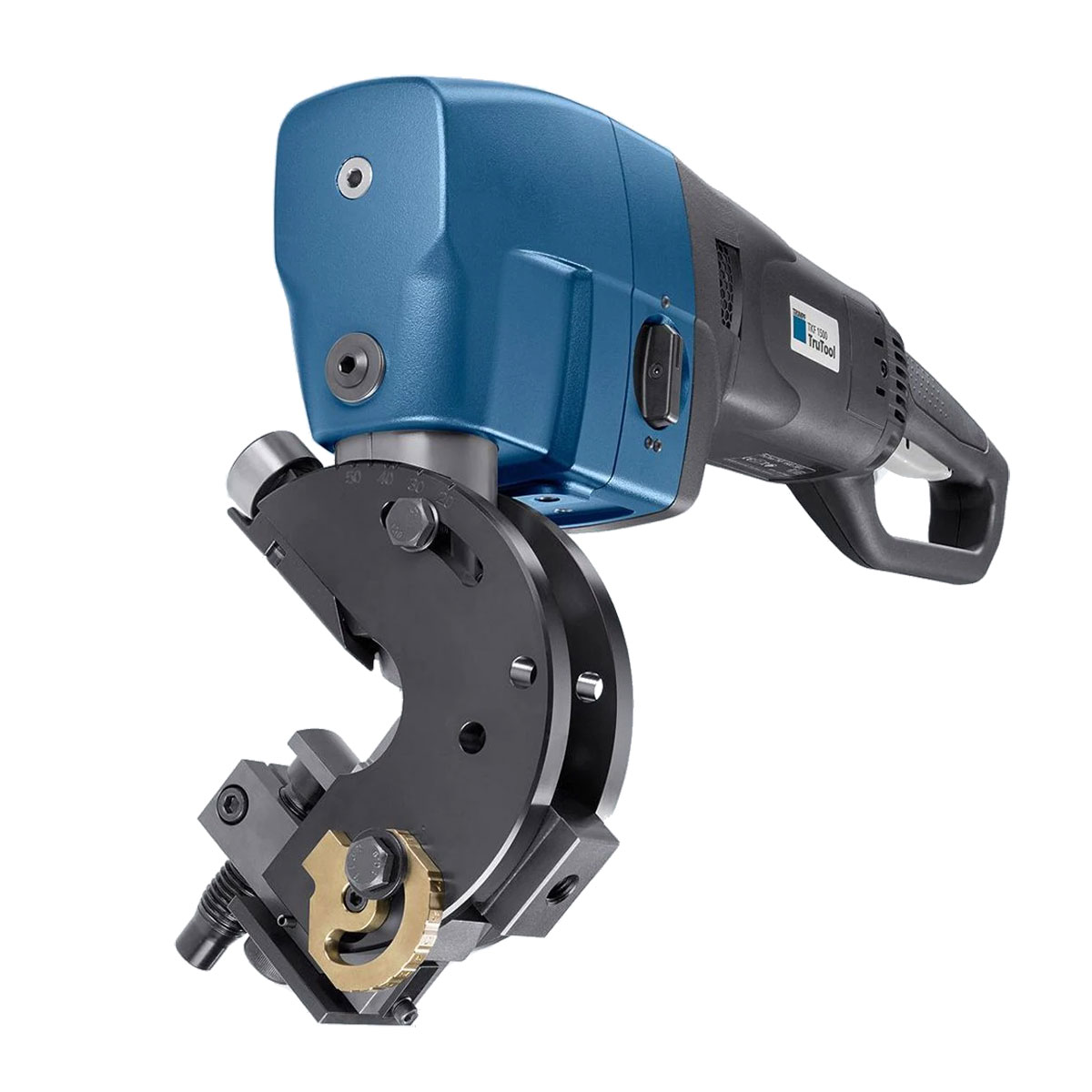

TRUMPF TruTool TKF1500 Plate Beveller with 2-Speed Gearbox

Calculating latest stock
TRUMPF TKF1500/2 15MM PLATE BEVELLER 110
Code: 35069
Manufacturers Part No: 2243322
Order For Delivery
Select the required delivery time and method at checkout.
Allow 3-4 days for delivery
£4,441.07 each
exc. VAT
£5,329.28 each
inc. VAT
Add to order


Product Overview

  • The Trump TruTool TKF1500 Plate Beveller is equipped with a powerful 2600W motor and 2-speed gearbox. This enables you to carry out individual processing adapted to the respective application.


    Features:

    Integrated hand protection on the motor ensures a high degree of user-friendliness and provides you with safety during operation. The soft grip enables you to work with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams or tubes. The surface roughness remains low.

    The 2-speed gearbox guarantees perfect results to match the material thickness, strength, and type of workpiece.

    The extremely powerful motor ensures a high degree of durability.

    Integrated hand protection on the motor provides you with a high degree of safety when working.

    It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness.

    You can use the carrier for various angles between 20° and 55°.

    Applications:

    For straight edges and radius edges: welding seam preparation on outer and inner contours. With interior cutout diameters from 130 mm. Also for T-beams and double T-beams.

    Tubes: welding seam preparation on tubes with an inside diameter from 30 mm.

    Specification:

    Max. chamfer length steel: 400n/mm2: 15mm, 600n/mm2: 9mm, 800n/mm2: 6mm

    Smallest radius: 55mm

    Working speed: 2m/min

    Stroke rate at nominal load: 370 1/min

    Nominal power consumption: 2600W

    Sheet thickness: 4mm – 160mm

    Weight: 19.2kg

    Included as Standard: High-Tensile Cutting Tool, Chip Box, Handle Base, Tube-Shaped Handle, Roller Holder, Hexagon-Head Screw M10 x 20 – 10.9 DIN 933, 2 x Hexagon-Head Screw M10 x 25 – 10.9 DIN 933, Wrench, 6mm Allen Key, 500ml Oil, Tube of Grease, Grease Gun & Setting Gauge.

    5 Years Warranty on all Trumpf Power Tools when registered.
