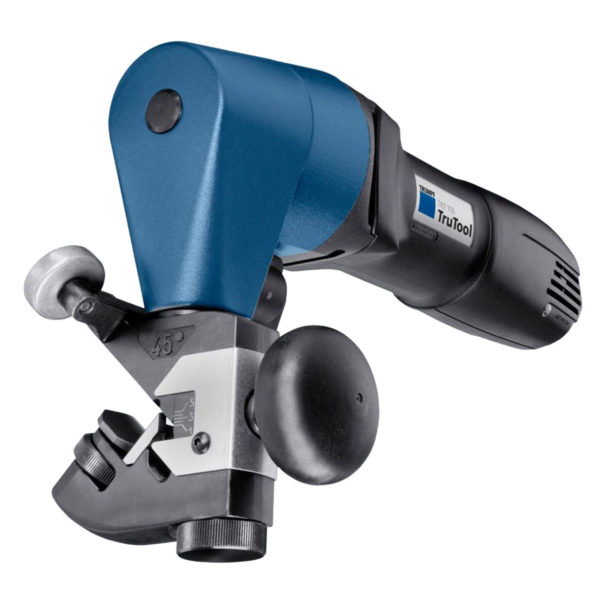

TRUMPF TruTool TKF700 45° Plate Beveller

Features:

Can be used wherever you want to make K-, V-, X- and Y-shaped bevel preparations; and this not only on level sheets but also pipes.

Bevel size and sheet thickness are set without tools and very simply.

The tool carrier is turned in one of three defined processing directions.

TruTool TKF 700 is a very light beveller at only 5.4kg.

You can use it manually in vertical, horizontal or overhead position or in a work station.

No extra tools required to adjust the bevel height and sheet thickness.

Quick release lock allows three defined directions for tool carrier setting.

Processes pipes with a minimum inside diameter of 80mm, inside cutouts starting 90mm diameter and curved edges with a minimum radius of 40mm.

Specification:

Input: 1400W

Bevel Angle (Basis for other data): 45°

Max. Bevel Height with Steel 400N/mm²: 4.9mm, Steel 600N/mm²: 4.0mm, Steel 800N/mm²: 2.8mm

Max. Bevel Length with Steel 400N/mm²: 7.0mm, Steel 600N/mm²: 5.7mm, Steel 800N/mm²: 4.0mm

Sheet Thickness: 1.0mm – 20mm

Working Speed: 1.5m/min

Strokes at Nominal Load: 570min
