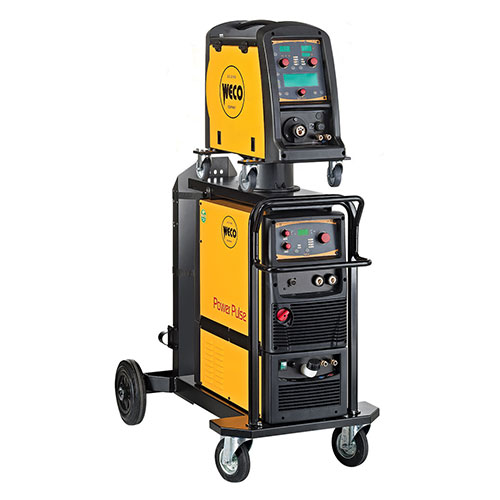

Weco Discovery Power Pulse 402 AC / DC 415v
Product Overview
-
The Weco Power Pulse 400 HSL is a heavy duty 400Amps @ 100% at 40°C industrial 3 phase inverter power source with separated wire feeder WF 104. Compared to standard spray arc and standard pulse, Pulse HSL delivers The Weco Cruiser 400 Synergic is a industrial synergic 3 phase inverter power source offering 400Amps 100% at 40° C, with separated wire feeder for MIG-MAG welding, MMA, MMA cellulosic, Lift TIG DC and Arc Air cutting and gouging processes available at the touch of a button.
Read more
Features:
Cell- The high dynamic dispensing of the welding current of the function MMA cellulosic permits welding in a perfect manner cellulosic electrodes, increasing the control of fusion and penetration. Ideal for hydraulic applications on oil and petrochemical industry.
High Speed Line – Faster execution and time deposit, low heat input and lower plastic deformation, Increased penetration and lower risk of gluing and lower production costs and amortization.
Power Focus – Increased penetration and less risk of fusion, quicker to, greater arc stability even with long stick-out and lower cost of joint preparation.
Specification:
Mains Voltage: 3x400Vac ± 15% @ 50-60Hz
Mains Protection: 32A
Welding Mode: MIG – MAG TIG MMA
Current Range: MIG MAG 20A – 400A
Current Range: TIG 5A – 400A
Current Range: MMA 5A – 400A
Working Cycle: 40°C MIG – MAG TIG MMA 400A @ 100%
Power Source Size (L x D x H): 1160 x 670 x 1530mm
Power Source Weight: 135Kg
