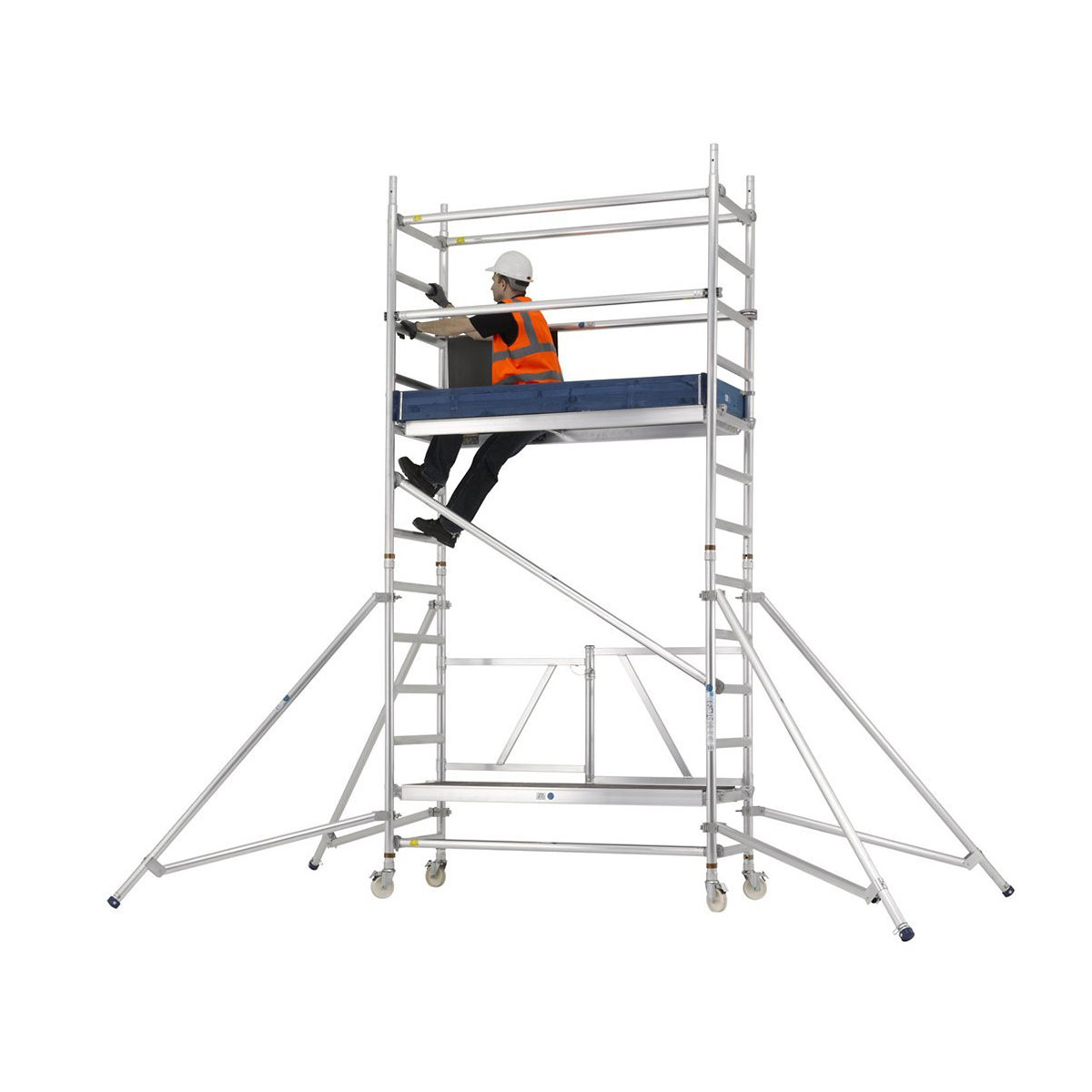

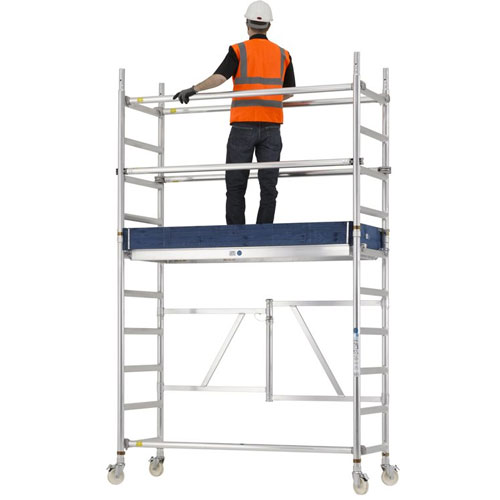

Zarges Reachmaster Mobile Scaffold Tower

Calculating latest stock


Product Overview

  • Reachmaster™ is a robust, easy to use mobile scaffold tower, which is suitable for a whole range of jobs, from working on low ceilings or decorating internal walls, to maintaining the outside of tall buildings.


    Features:

    Heavy duty construction.

    8 different working heights.

    1.8m x 0.68m platform size.

    Robust 50mm diameter frames and braces.

    Frames and braces snap into place.

    Braces are colour coded for maximum ease during erection.

    Safe trapdoor access.

    Quick to set-up.

    Folding base unit with compact closed dimensions.

    Compact dimensions ensure easier storage and transportation.

    Folding frame only 1900 x 960 x 360mm when closed.

    Erected using 3T method; through the trapdoor.

    Professional German design.

    Safe working load up to 210 kg.

    Certified to EN1004 Class 3.

    Code

    Working Height

    Platform Height

    Toeboards

    x4

    Outriggers

    x4

    Wheels*

    x4

    Weight

    kg

    02002

    2.6m

    0.6m

    No

    No

    Yes

    27.2

    02003

    2.9m

    0.9m

    No

    No

    Yes

    36.0

    02004

    3.7m

    1.7m

    No

    No

    Yes

    45.9

    02005

    3.7m

    1.7m

    No

    Yes

    Yes

    61.5

    02006

    4.5m

    2.5m

    Yes

    Yes

    Yes

    62.5

    02007

    5.7m

    3.7m

    Yes

    Yes

    Yes

    112.0

    02008

    6.5m

    4.5m

    Yes

    Yes

    Yes

    117.0

    02009

    7.8m

    5.8m

    Yes

    Yes

    Yes

    165.0

    02010

    8.5m

    6.5m

    Yes

    Yes

    Yes

    175.0



    *Wheels are 125mm in diameter up to and including 6.5m working height. For 7.8m and over, the wheels are 150mm in diameter with an adjustable range of 15cm.
