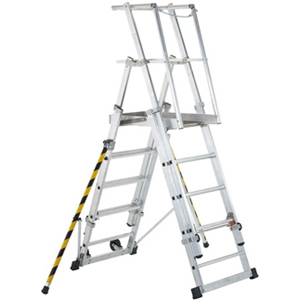

Zarges Zap Extendable Work Platform

Sorry, this product has been discontinued
Calculating latest stock


Product Overview

  • The Zap platform is designed to close the gap between ladders and scaffolds: they offer a comfortable, large platform, are fast to be deployed and offer compact storage and transport dimensions.


    Read more

    Features:

    Four sizes available: 3 – 5 rungs, 4 – 7 rungs, 5 – 9 rungs and 7 – 12 rungs.

    Large standing platform 665mm x 440mm, with guard rail and knee bar.

    Easy to operate: rung by rung height adjustment based on push-up ladder principle with gravity latch.

    Already complies with EN131 without swung-out stabilisers, thanks to horizontal stabiliser bars on both sides.

    Stable according to the requirements of BGI637 with swung-out stabiliser leg.

    Very easy to erect – handrails and guard rails automatically unfold during erection.

    Compact dimensions when folded, therefore easy to transport and store.

    High-strength connection between rungs and stiles.

    Can be easily maneuvered thanks to pair of wheels, even when erected.

    Replaceable 2-component plastic end caps ensure positioning without risk of slipping.

    Standards: BGI637 & EN131 rated to 150kg.

    10 Years Warranty.





    Code

    No. of Rungs

    Platform Heights

    Max. Working Height

    Weight

    02500

    3 – 5

    0.81 / 1.00 / 1.34m

    3.35m

    28.0kg

    02501

    4 – 7

    1.00 / 1.30 / 1.60 / 1.80m

    3.80m

    35.0kg

    02300

    5 – 9

    1.30 / 1.60 / 1.80 / 2.10 / 2.40m

    4.40m

    38.5kg

    02502

    7 – 12

    1.80 / 2.07 / 2.34 / 2.61 / 2.88 / 3.15m

    5.15m

    50.0kg
