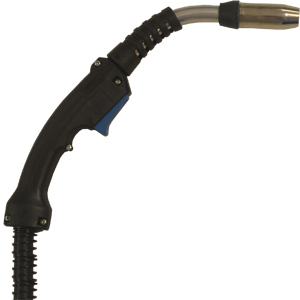

Bernard Q200 Quik Tip Series Mig Torch

Gun Comprises Of:

Stay-Tite Technology – Long-lasting power cable compression fittings and necks with large tapered gun connections combine to form the foundation of Bernard Stay-Tite technology. This technology ensures optimal conductivity to increase weld consistency and lessen heat output while improving product durability.

Neck & Components – New Polished aluminium armor on all necks is 35% thicker than previously used brass armor for increased durability with no weight penalty.

Fixed and rotatable necks fits all Q-Guns and S-Guns from 150 – 600 Amps.

Quick Tip Series – Quik Tips designed with threaded taper lock that increases tip life by providing excellent heat transfer and electrical conductivity.

A quick twist is all it takes to install Quik Tips.

Gas diffusers have positive stops to secure Quik Tips in a fixed position for superior repeatability and consistent, quality welds.

Nozzles available in threaded and slip-on styles.

Liner – Proprietary in-house coiling process and unique composition eliminates flat spots or sharp edges inside liner to improve wire feed performance.

100 Percent tested prior to shipment to ensure the smoothest wire feed in the industry.

Liners won’t gap when bent!

Specification:

CO2 Gas Specification: 60% CE Duty Cycle: 240

80% ARG 20% CO2 Specification: 60% CE Duty Cycle: 200
