Optrel Panoramaxx 2.5 ADF Welding Helmet 5-12

Calculating latest stock
Code: 73270
Manufacturers Part No: 1010.000
Order For Delivery
Select the required delivery time and method at checkout.
Total Stock Available:2
£360.07 each
exc. VAT
£432.08 each
inc. VAT
Add to order

Product Overview

  • With panoramaxx optrel introduces a never seen before world of viewing to the welder. The nose cut-out brings the ADF closer to your eyes. As with eyeglasses, the ADF‘s frame becomes almost invisible to the welder, increasing the field of view by more than 6 times. Nevertheless, the panoramaxx is a real lightweight at only 550 g.


    The panoramaxx offers a 6 times larger field of vision than standard welding helmets – and is still a lightweight at only 550 g.

    A specially developed UV/IR filter allows the realistic color perception typical of optrel, bringing color to the welder’s world.

    Detection of the arc brightness and fully automated shade level adjustment from 5 to 12.

    With its rechargeable power-pack, changing batteries is no longer necessary.

    The completely redesigned controls of the 5-sensor array ensure the perfect regulation of the auto-darkening filter.

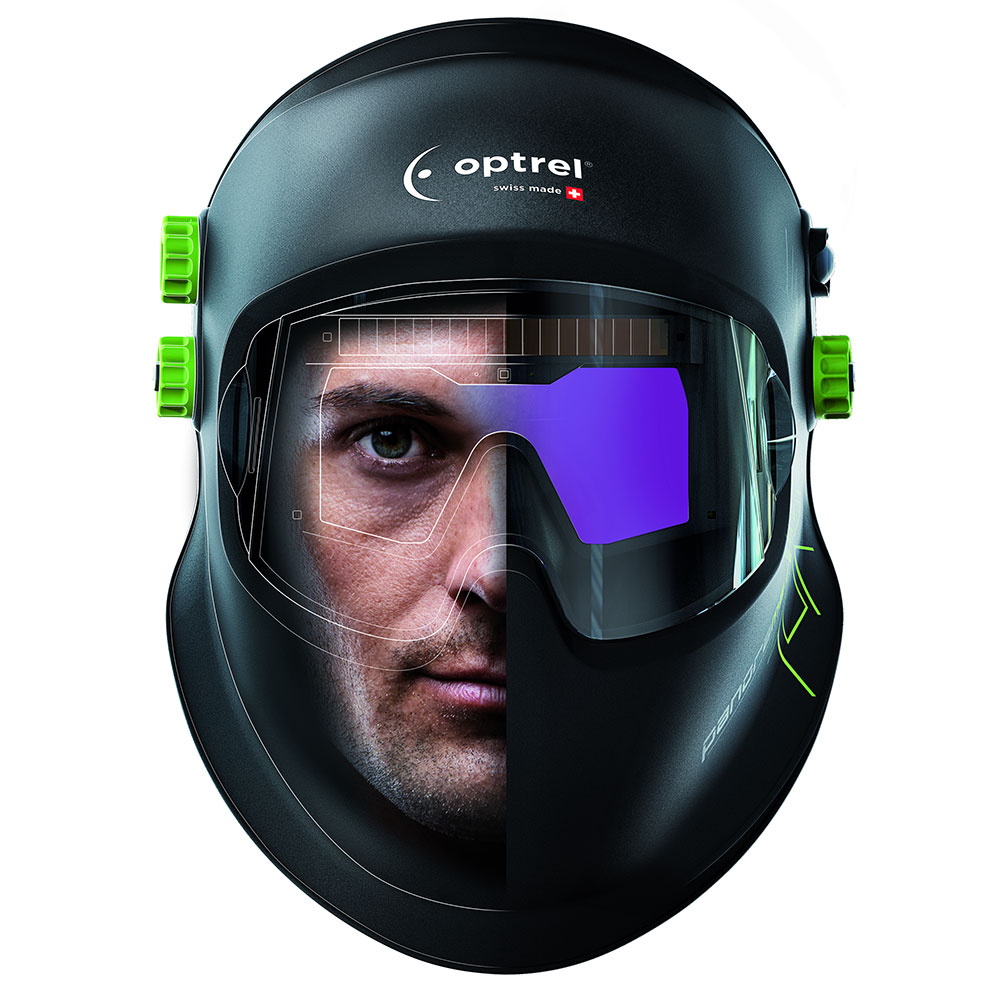

    Thanks to the unique glare protection cartridge with a nose cut-out, the display – which is optimal from an ergonomic perspective – is positioned closer to the eye and thus enlarges the field of vision six-fold in comparison to conventional welding masks without adding to the weight.

    The panoramaxx combines the latest optrel innovations of the most recent product ranges with an unprecedented panorama view – the most advanced welding helmet of its time.


    Power supply Solar cells, lithium-polymer battery, rechargeable by USB-cable.

    Battery operating time approximately 1000 hours.

    Five sensors.

    Infinitely adjustable, now with “super high” sensitivity.

    Switching time light to dark: 0.090 ms at room temperature at 55°C 0.070 ms at 55°C.

    Switching time dark to bright: 0.1 s to 1.5 s (with dimming function).

    Field of vision: Depending on headband setting, 2.3x to 6.3x field of vision of a 100 x 50 mm standard industry ADF.

    Classification:  Optical class: 1

    Scattered light: 1

    Homogeneity: 1

    Angular dependence: 2

    Shape stability:    Welding mask: up to 220 °C / 428 °F

    Front cover lens: up to 137 °C / 279 °F

    Welding helmet weight: 530g

    Standards CE, ANSI, complies with CSA

    Exclusive 3 Years Warranty on all Optrel Welding Helmets excluding Batteries when registered.
